Main category » Capacitors » Foil capacitor »

F862DO564K310ZV054

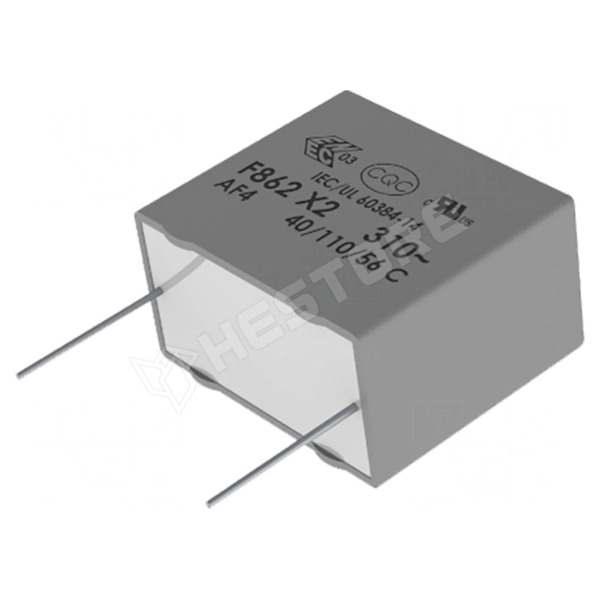

Foil capacitor, polypropylene (PP), 560nF, 22.5mm

Manufacturer partno	F862DO564K310ZV054
RoHS	yes
Manufacturer	KEMET
Series	F862
Tolerance	±10%
Type of capacitor	polypropylene (PP)
Capacitance	560nF
Operating voltage	630V DC, 310V AC
Terminal pitch	22.5mm
Operating temperature	-40...110°C
Body dimensions	26x18.5x10mm
Conform to the norm	AEC-Q200
Cable length	4mm
Pulse resistance	200V/μs
Kind of capacitor	X2

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.456.75

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	532 Ft
5+	351 Ft
10+	325 Ft
20+	309 Ft
50+	295 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
3 workdays	> 500
