JF-0826B-12V-10

Name: JF-0826B-12V-10
Brand: HESTORE
SKU: 100.456.74
Availability: InStock

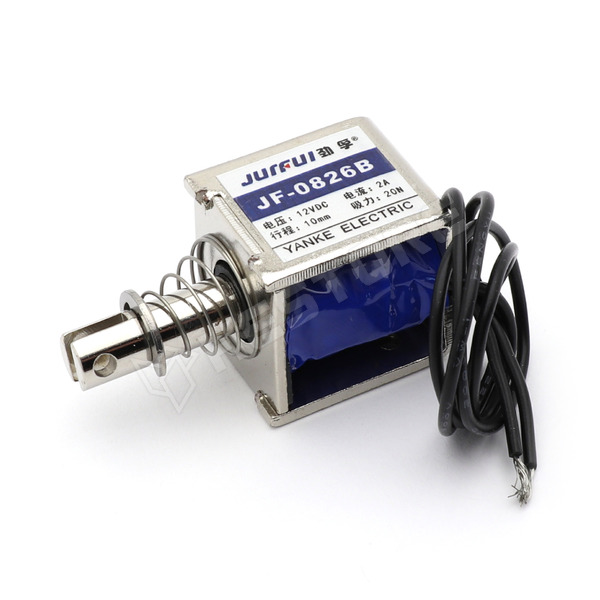

Electromagnet (solenoid), 12V, 10mm stroke, 20N

Model JF-0826B
Rated Voltage: DC 12V
Rated Current: 2A
Stroke: 10mm
Force: 20N/2Kg/4.4LB
Metal Frame Size: 27 x 25 x 22mm/1.02" x 0.98" x 0.87"(L*W*H)
Coil Size: 19 x 17mm/0.75" x 0.67"(L*D)
Total Lenght: 57mm/2.24"
Plunger Diameter: 7.4mm/ 0.3''
Cable Length: 20cm/ 7.9''
