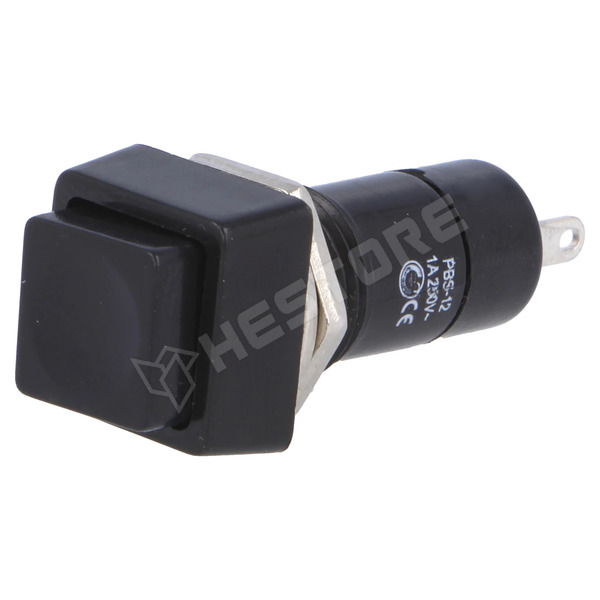

PS12ABK

Push switch, OFF-ON, SPST-NO, for panel mounting, Ø12mm, 1A / 250V AC

Manufacturer partno	PS12ABK
RoHS	yes
Mounting	for panel mounting
Operating temperature	-25...70°C
Body colour	black
Mounting hole diameter	Ø12mm
Leads	for soldering
Illumination	none
Type of switch	push-button
Stable positions number	2
Number of positions	2
Switching method	OFF-ON
Contacts configuration	SPST-NO
Mounting hole diameter	Ø12mm
Max. contact resistance:	20mΩ
Body colour	black
Electrical life	50000 cycles
Actuator colour	black
Button shape	square
AC contacts rating @R	1A / 250V AC
