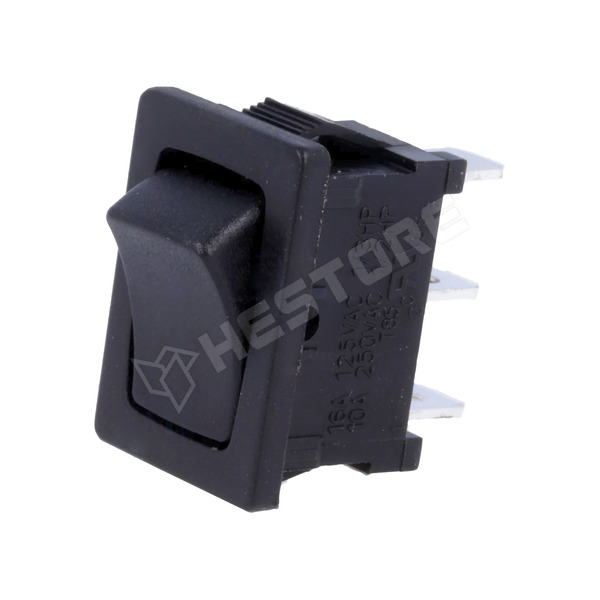

R13-66C-02-BB-0D

Rocker switch, ROCKER, SPDT, ON-ON, 2 stable positions, 10A / 250V AC, UL94V-2, without marking

Manufacturer partno	R13-66C-02-BB-0D
RoHS	yes
Manufacturer	SCI
Series	R13-66-AC
Operating temperature	-20...85°C
Body colour	black
Mounting hole diameter	19.4x13mm
Related items	R13-66A-29
Shape	rectangular
Leads	4,8x0,8mm connectors
Illumination	none
Type of switch	ROCKER
Stable positions number	2
Number of positions	2
Switching method	ON-ON
Body material	polyamide
Contacts configuration	SPDT
Max. contact resistance:	50mΩ
Flammability rating	UL94V-2
Body colour	black
Electrical life	6000 cycles
Actuator colour	black
Button marking	blank
Panel thickness	max. 3mm
AC contacts rating @R	10A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.450.07

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	450 Ft
5+	281 Ft
10+	256 Ft
20+	241 Ft
50+	229 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 350
