GY-BNO085

Name: GY-BNO085
Brand: HESTORE
SKU: 100.449.01
Availability: InStock

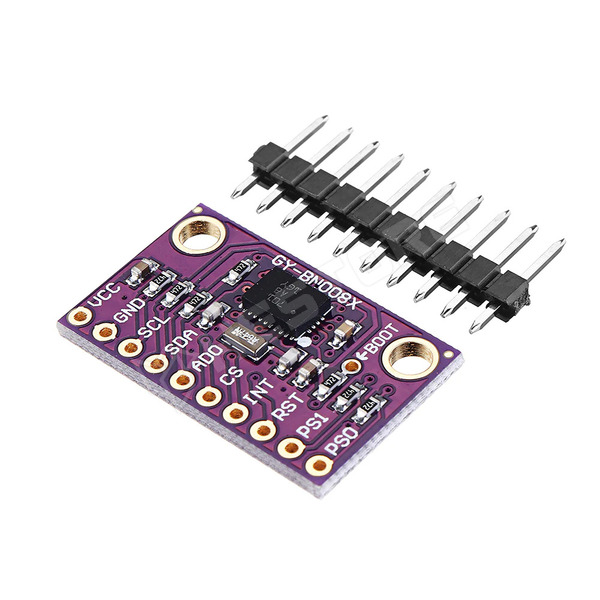

BNO085 based high precision IMU module, 9DOF, AHRS, gyroscope, accelerometer, magnetometer, 3.3V

I2C (Default): Up to 400kHz
SPI: Up to 3MHz
UART: 3Mbps
UART-RVC: 115200kbps

Heading Drift: 0.5° / min
Dynamic Rotation Error: 4.5°
Static Rotation Error: 3.0°
Gravity Angle Error: 1.5°
Linear Acceleration Accuracy: 0.35m/s2
Accelerometer Accuracy: 0.3m/s2
Gyroscope Accuracy: 3.1° / sec
Magnetometer Accuracy: 1.4μT

Warning! The modul works only with 3.3V!

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.449.01

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	10 034 Ft
5+	9 456 Ft
10+	9 273 Ft
20+	9 101 Ft
50+	8 853 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
