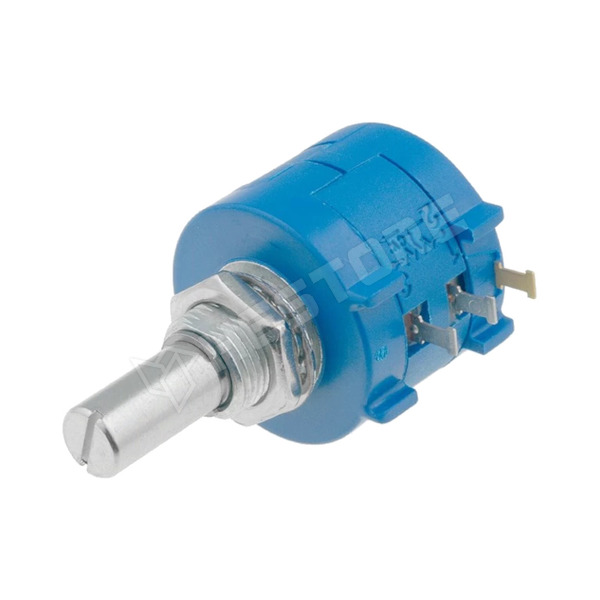

3590S-2-502L

Potentiometer, multi-turn, 6mm metal shaft, 10 turns, 2W, 5kΩ

Manufacturer partno	3590S-2-502L
RoHS	yes
Manufacturer	BOURNS
Power	2W
Resistance	5kΩ
Characteristics	linear
Shaft diameter	6.35mm
Tolerance	±5%
Operating temperature	-40...125°C
Body dimensions	Ø22.22x18.6mm
Temperature coefficient	50ppm/°C
Type of potentiometer	axial, multiturn
Number of electrical turns	10
Track material	wire-wound, wire
Min. insulation resistance	1000MΩ
IP rating	IP40
Shaft surface	smooth
Shaft length	12.6mm
Thread length	8mm
Potentiometer features	precise
Linearity tolerance	±0.25%
Shaft material	metal
L shaft length	20.6mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.448.92

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	5 655 Ft
5+	5 264 Ft
10+	5 154 Ft
20+	5 054 Ft
50+	4 914 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
