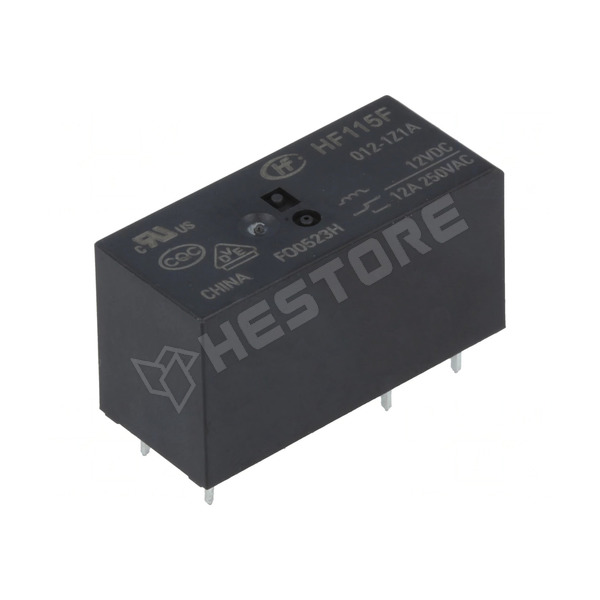

HF115F/012-1Z1A

Relay, SPDT, 12V DC, 12A / 250V AC, 12A / 24V DC

Manufacturer partno	HF115F/012-1Z1A
RoHS	yes
Manufacturer	HONGFA RELAY
Mounting	PCB
Terminal pitch	3.5mm
Operating temperature	-40...85°C
Body dimensions	29x12.7x15.7mm
Contact material	AgSnO₂
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	12A
Switched voltage	max. 300V DC, max. 440V AC
Relay variant	miniature
Coil resistance	360Ω
Coil voltage min.	8.4V DC
Coil voltage max.	18V DC
Operate time	15ms
Release time	8ms
Coil power consumption	400mW
Relay series	HF115F
Contact resistance	100mΩ
DC contacts rating @R	12A / 24V DC
AC contacts rating @R	12A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.448.31

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 141 Ft
5+	961 Ft
10+	926 Ft
20+	900 Ft
50+	871 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 150
