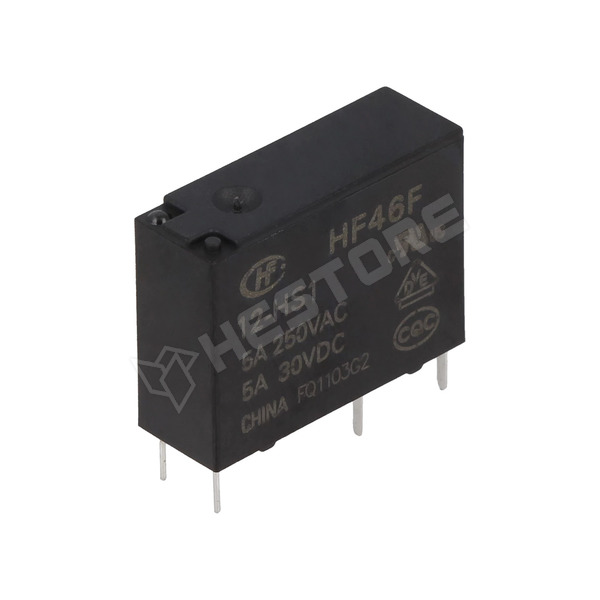

HF46F-12-HS1

Relay, SPST-NO, 12V DC, 5A / 250V AC, 5A / 30V DC

Manufacturer partno	HF46F/012-HS1
RoHS	yes
Manufacturer	HONGFA RELAY
Mounting	PCB
Operating temperature	-40...85°C
Body dimensions	20.5x7.2x15.3mm
Body dimensions	20.5x7.2x15.3mm
Contact material	AgNi
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	5A
Switched voltage	max. 277V AC, max. 30V DC
Relay variant	miniature
Coil resistance	720Ω
Coil voltage min.	9V DC
Coil voltage max.	15.6V DC
Operate time	10ms
Release time	10ms
Coil power consumption	200mW
Relay series	HF46F
Contact resistance	100mΩ
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	5A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.465.93

Add to favorites

Quantity (pcs):

Packing:
160 pcs / tray

Unit price excl. VAT

1+	398 Ft
5+	249 Ft
10+	224 Ft
20+	210 Ft
50+	198 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 5000
10-15 workdays	> 5000
