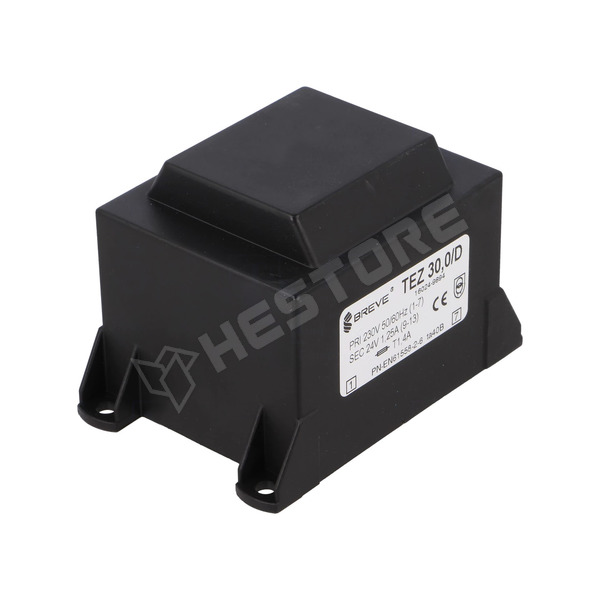

TEZ30/D230/24V

PCB Transformer, encapsulated, 230V AC, 24V AC, 30VA, 1250mA, IP00

Manufacturer partno	TEZ30/D230/24V
RoHS	yes
Manufacturer	BREVE TUFVASSONS
Power	30VA
Weight	700g
Mounting	PCB
IP rating	IP00
Type of transformer	encapsulated
Primary voltage	230V AC
Secondary voltage 1	24V
Electrical insulation strength	4kV/60s
Conform to the norm	PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
Thermal class	Ta40B
Secondary winding terminals	9-13
Primary winding terminals	1-7
A dimension	53.8mm
A1 dimension	32.5mm
A2 dimension	30mm
B dimension	63.6mm
C dimension	56.5mm
Secondary winding current 1	1250mA

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.446.64

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	5 405 Ft
5+	5 024 Ft
10+	4 918 Ft
20+	4 822 Ft
50+	4 688 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
On request
