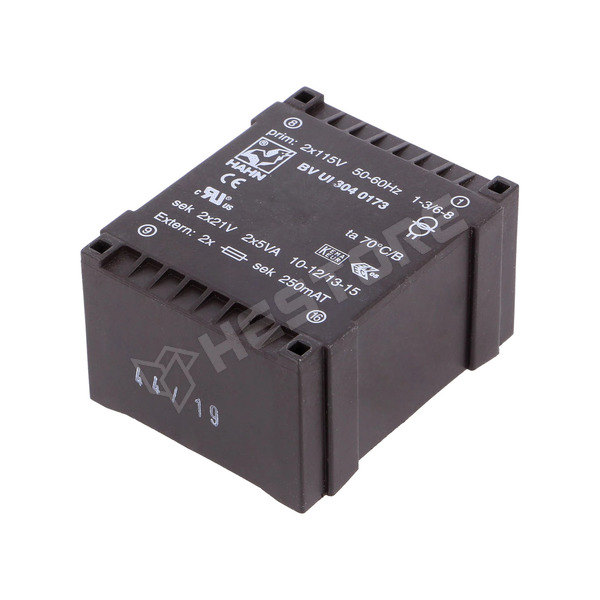

BVUI3040173

Transformer, encapsulated, 10VA, 2 x 115V AC, 2 x 21V AC, 2 x 238mA

Manufacturer partno	BV UI 304 0173
RoHS	yes
Manufacturer	HAHN
Power	10VA
Weight	260g
Mounting	PCB
Body dimensions	53.4x44.6x28.8mm
Body dimensions	53.4x44.6x28.8mm
Type of transformer	encapsulated
Primary voltage	2x 115V AC
Secondary voltage 1	21V
Conform to the norm	PN-EN 61558-2-6:2000, UL 5085-1, UL 5085-3
Thermal class	Ta70C/B
Secondary winding current 1	238mA
Secondary voltage 2	21V
Secondary winding current 2	238mA

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.445.67

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	4 915 Ft
5+	4 641 Ft
10+	4 543 Ft
20+	4 455 Ft
50+	4 331 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
On request
