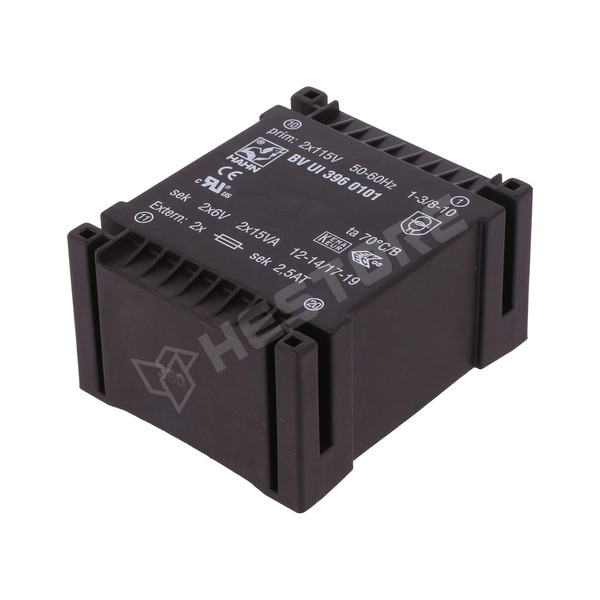

BV UI 396 0101

Transformer, encapsulated, 2x115V AC, 2x6V AC, 2x2.5A, 30VA

Manufacturer partno	BV UI 396 0101
RoHS	yes
Manufacturer	HAHN
Power	30VA
Series	BVUI
Mounting	PCB
Body dimensions	68.6x57.7x36mm
Body dimensions	68.6x57.7x36mm
Type of transformer	encapsulated
Primary voltage	115V AC x2
Secondary voltage 1	6V
Conform to the norm	PN-EN 61558-2-6:2000, UL 5085-1, UL 5085-3
Thermal class	Ta70C/B
Secondary winding current 1	2.5A
Secondary voltage 2	6V
Secondary winding current 2	2.5A

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.459.02

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	5 672 Ft
5+	5 281 Ft
10+	5 170 Ft
20+	5 070 Ft
50+	4 929 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 75
