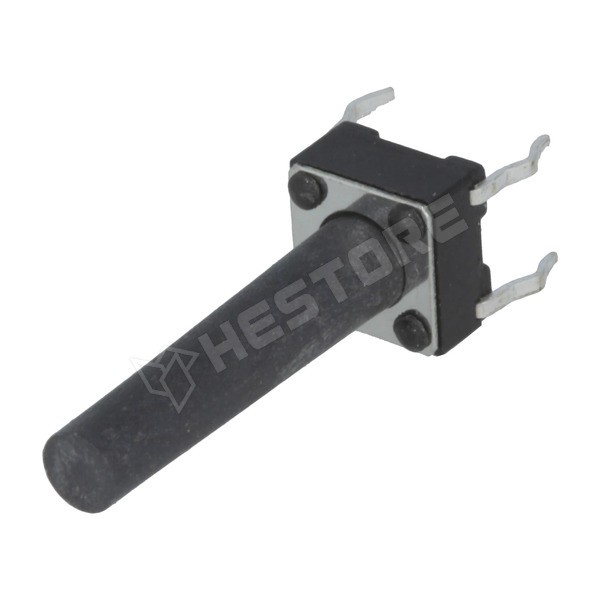

TACT-620

Tactile switch, SPST-NO, THT, 6x6mm, 20mm

Manufacturer partno	KH-6X6X20H-TJ
Mounting	THT
Operating temperature	-25...70°C
Body dimensions	6x6mm
Min. insulation resistance	100MΩ
Type of switch	microswitch TACT
Stable positions number	1
Number of positions	2
Contacts configuration	SPST-NO
Soldering temperature	250°C
Operating Force	1.6N
Max. contact resistance:	50mΩ
Button height	20mm
DC contacts rating @R	0.05A / 12V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.445.65

Add to favorites

Quantity (pcs):

Packing:
1000 pcs / bag

Unit price excl. VAT

1+	43,44 Ft
10+	16,47 Ft
50+	10,30 Ft
100+	8,09 Ft
200+	6,94 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 150
10-15 workdays	> 1000
