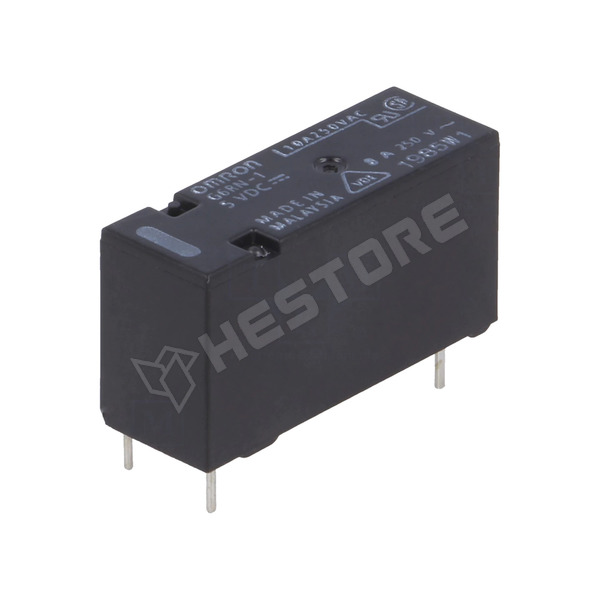

G6RN-1 5VDC

Relay, SPDT, 5V DC, 8A / 250V AC, 5A / 30V DC

Manufacturer partno	G6RN-1 5VDC
RoHS	yes
Manufacturer	OMRON OCB
Mounting	PCB
Terminal pitch	3.2mm
Operating temperature	-40...85°C
Body dimensions	28.5x10x15mm
Body dimensions	28.5x10x15mm
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	5V DC
Contact current max.	8A
Switched voltage	max. 250V AC, max. 30V DC
Relay variant	miniature
Coil resistance	114Ω
Operate time	15ms
Release time	5ms
Coil power consumption	220mW
Relay series	G6RN
Coil current	44mA
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	8A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.438.72

Add to favorites

Quantity (pcs):

Packing:
20 pcs / tube

Unit price excl. VAT

1+	920 Ft
5+	722 Ft
10+	690 Ft
20+	668 Ft
60+	644 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 10000
