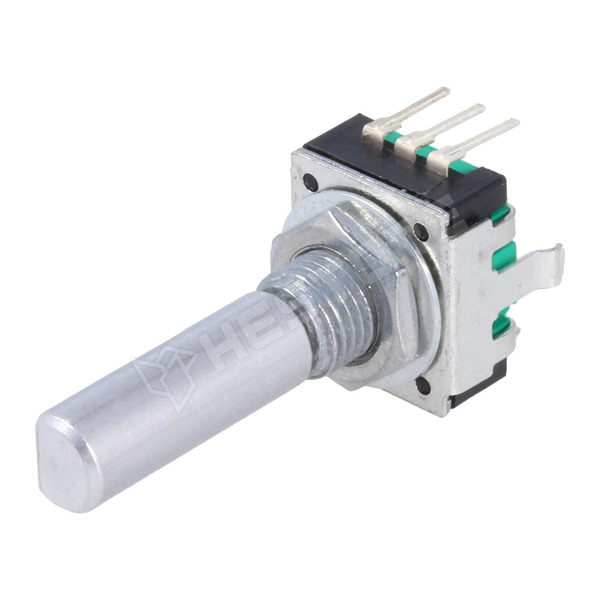

PEC11R-4225F-S0024

Encoder, incremental, THT, 24imp/revol, 24 position, two phase A and B

Manufacturer partno	PEC11R-4225F-S0024
Manufacturer	BOURNS
Shaft diameter	6mm
Mounting	THT
Operating voltage	5V DC
Operating temperature	-30...70°C
Mechanical durability	30000 cycles
Shaft surface	D spring
Shaft length	25mm
Max. operating current	10mA
Resolution	24imp/revol.
Number of positions	24
Key stroke	0.5mm
Type of encoder	incremental
Cut depth	1.5mm
Output signal	two phase A and B
Encoders features	with push button

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.435.87

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	847 Ft
5+	653 Ft
10+	622 Ft
20+	601 Ft
50+	579 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 500
