Main category » Switches, Relays » Encoders »

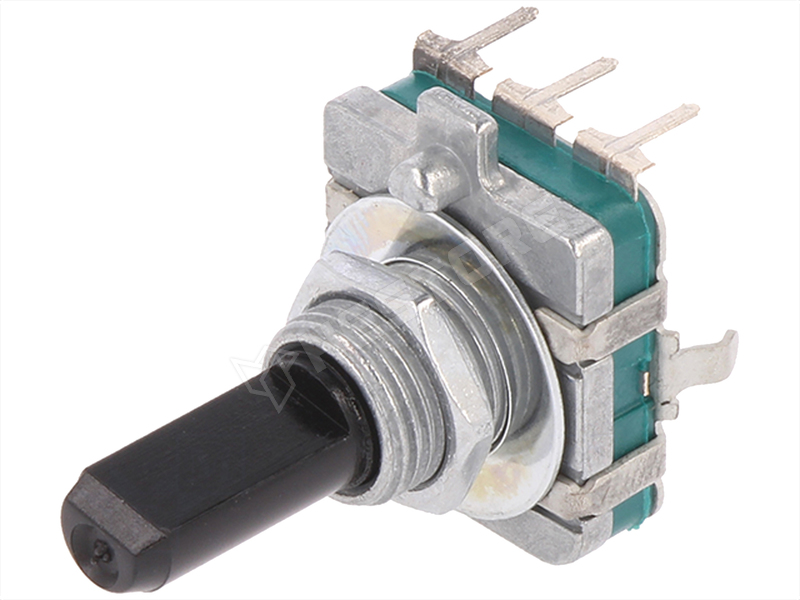

PEC16-4220F-N0024

Rotary enkoder

Manufacturer partno	PEC16-4220F-N0024
Manufacturer	BOURNS
Shaft diameter	6mm
Mounting	THT
Operating voltage	5V DC
Operating temperature	-30...70°C
Mechanical durability	100000cycles
Shaft surface	D spring
Shaft length	20mm
Max. operating current	1mA
Resolution	24imp/revol.
Number of positions	24
Signal output	two phase A and B
Type of encoder	incremental
Cut depth	1.5mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.392.32

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	837 Ft
5+	643 Ft
10+	612 Ft
20+	591 Ft
50+	569 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 2000
