PDUUAT98-103MLN

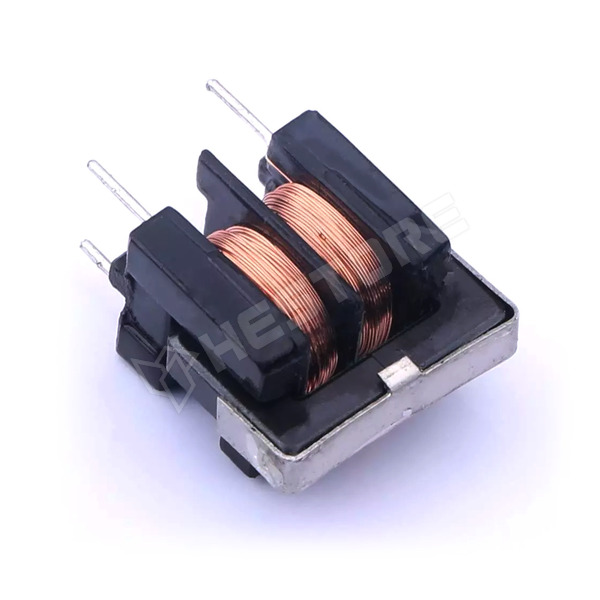

Common mode choke coil, 10mH, 700mA, 1kV, 1kHz

RoHS	yes
Manufacturer	PROD Tech
Resistance	700mΩ
Mounting	THT
Terminal pitch	8x7mm
Operating temperature	-25...105°C
Body dimensions	17 x 17 x 12mm
Spatial orientation	vertical
Operating current	700mA
Inductance	10mH
Leads	4
Number of windings	2
AC test voltage	1kV
Core material	ferrite

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.435.53

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	330 Ft
5+	206 Ft
10+	182 Ft
20+	169 Ft
50+	158 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 15
10-15 workdays	> 10000
