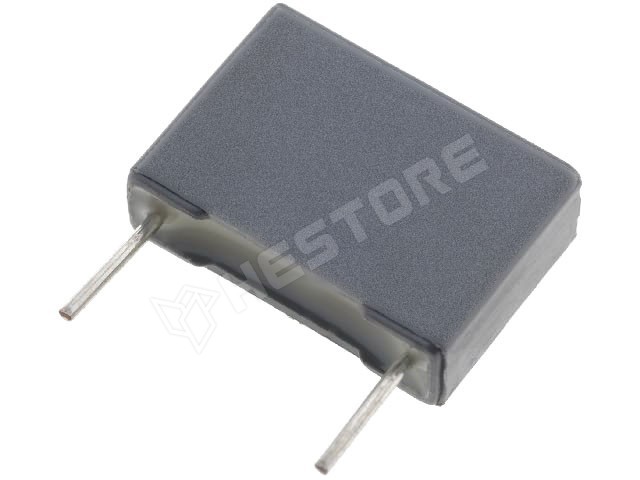

100 nF / 275 V X2

Name: 100 nF / 275 V X2
Brand: KEMET
SKU: 100.295.56
Availability: InStock

Fóliakondenzátor RM15

MKP sorozat
A kondenzátor típusa X2, zavar elleni
Kapacitás 100nF
Üzemi feszültség 275V AC
Kivezetési raszter 15mm
Tolerancia ±20%
Keramia test mérete 5 x 11 x 18mm
Huzalkivezetés mérete hossz 4mm
Klímakategória IEC60068-1
Üzemi hőmérséklet -40...110°C

RoHS	no
Manufacturer	KEMET
Mounting	THT
Tolerance	±20%
Type of capacitor	polypropylene (PP), X2
Capacitance	100nF
Operating voltage	275V AC
Terminal pitch	15mm
Operating temperature	-40...110°C
Body dimensions	5 x 11 x 18mm, 18x5x11mm
Climate class	IEC60068-1, 40/110/56 (IEC 60068-1)
Capacitors series	R46
Max. operating voltage	275V AC, 560V DC
Capacitor application	between the supply poles
Leads dimensions	len. 4mm
Lead length	4mm
Kind of capacitor	X2
Capacitance - µF	0.1µF

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Related, recommended articles

Szilárdtest relék (SSR) és a snubber-körök fontossága, tervezése

Part.No: 100.295.56

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	123 Ft
5+	76,71 Ft
10+	55,12 Ft
20+	44,03 Ft
50+	36,84 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 200
3 workdays	> 25000

General usage and safety instructions (HU)

Any questions?

Alternatives, similar/substitute products

MKP-X2-100NR15/310
Foil capacitor, polypropylene (PP), 100nF, 310V AC, 15mm, THT
