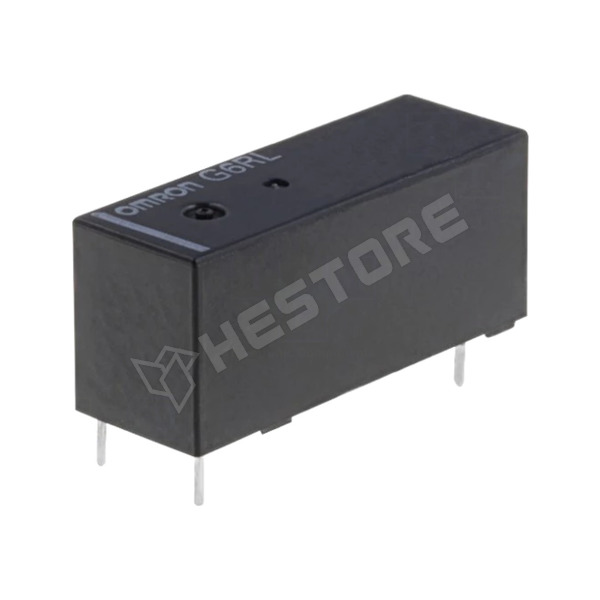

G6RL-1-12VDC

Relay, SPDT, 12V DC, 8A / 250V AC, 5A / 30V DC

Manufacturer partno	G6RL-1 12VDC
RoHS	yes
Manufacturer	OMRON OCB
Mounting	PCB
Terminal pitch	3.2mm
Operating temperature	-40...85°C
Body dimensions	28.5x10x12.3mm
Body dimensions	28.5x10x12.3mm
Contact material	AgNi
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	10A
Switched voltage	max. 250V AC, max. 30V DC
Relay variant	miniature
Coil resistance	476Ω
Operate time	10ms
Release time	5ms
Coil power consumption	300mW
Relay series	G6RL
Contact resistance	100mΩ
Coil current	25.2mA
Enclosure description	standard seal
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	8A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.434.78

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 431 Ft
5+	1 205 Ft
10+	1 163 Ft
20+	1 132 Ft
50+	1 096 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 100
