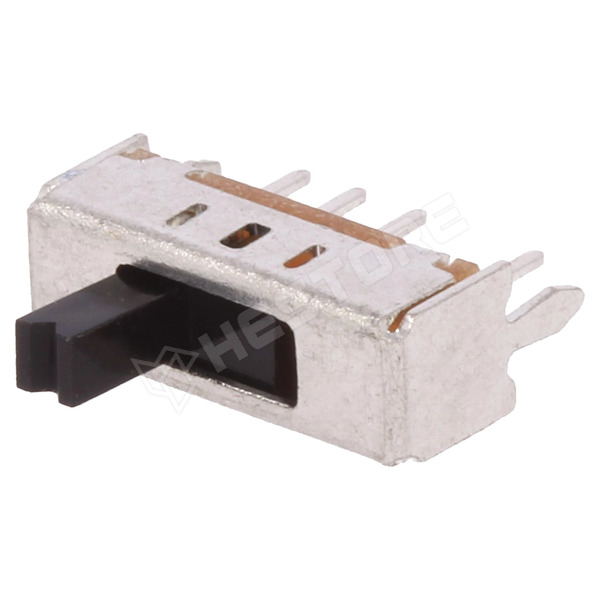

OS103011MS8QP1

Switch, slide, SP3T, 0.1A / 12V DC, ON-ON-ON

Manufacturer partno	OS103011MS8QP1
Manufacturer	C&K
Series	OS
Mounting	THT
Operating temperature	-30...70°C
Body dimensions	12.6x4.3x4mm
Contact plating	silver plated
Leads	for soldering
Mechanical durability	10000 cycles
Type of switch	slide
Stable positions number	3
Number of positions	3
Switching method	ON-ON-ON
Contact material	brass
Contacts configuration	SP3T
Knob height	4mm
Electrical life	10000 cycles
DC contacts rating @R	0.1A / 12V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.432.10

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	365 Ft
10+	228 Ft
50+	210 Ft
100+	204 Ft
200+	200 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 7500
10-15 workdays	> 1000
