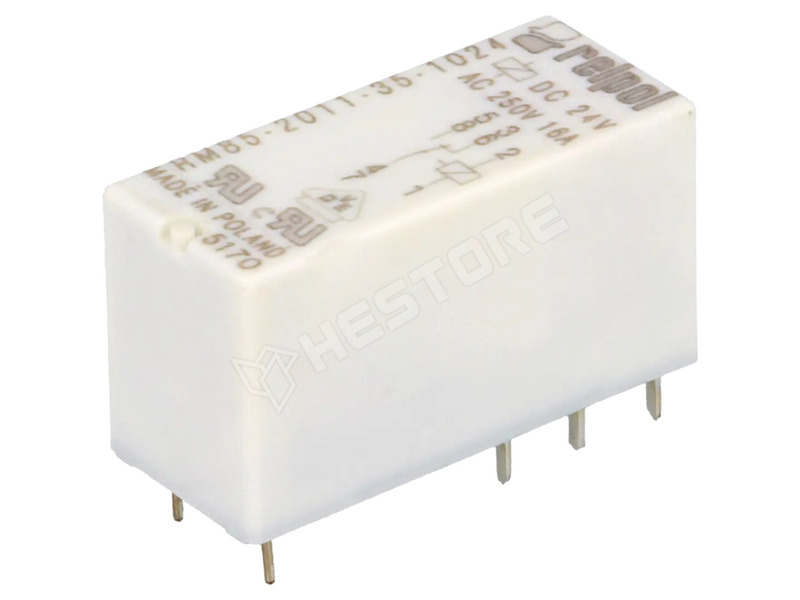

RM85-3011-35-1024

Relay, SPDT, 24V DC, 16A / 250V AC, 16A / 24V DC, 16A

Manufacturer partno	RM85-3011-35-1024
RoHS	yes
Manufacturer	RELPOL
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-40...85°C
Body dimensions	29x12.7x15.7mm
Body colour	white
Body dimensions	29x12.7x15.7mm
Related items	GD50, GZ80, GZM80, GZM80-BK, GZT80, PW80
Current rating	16A
IP rating	IP67
Contact material	AgSnO₂
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	16A
Switched voltage	max. 440V AC, max. 250V DC
Relay variant	miniature
Coil resistance	1440Ω
Coil voltage min.	16.8V DC
Coil voltage max.	61.2V DC
Operate time	8ms
Release time	3ms
Coil power consumption	480mW
Relay series	RM85
Contact resistance	100mΩ
Max surge current	30A
DC contacts rating @R	16A / 24V DC
AC contacts rating @R	16A / 250V AC
OEM number	604576

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.430.92

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	905 Ft
5+	709 Ft
10+	676 Ft
20+	654 Ft
50+	631 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 500
