SEEEDUINO-XIAO-EXPBRD

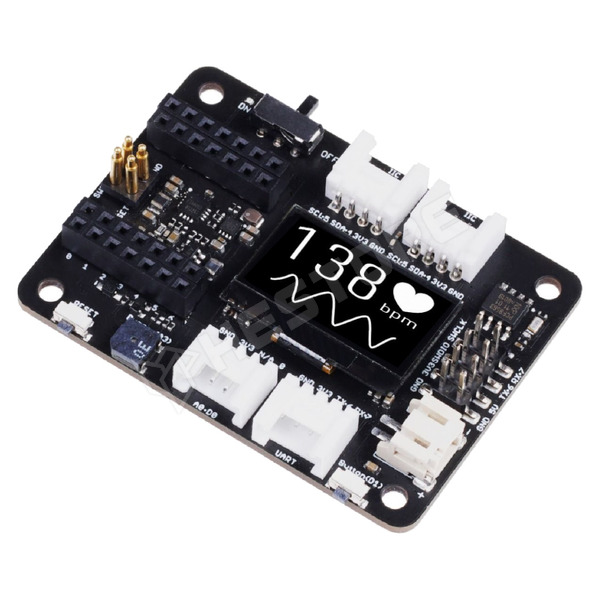

Seeeduino XIAO expansion board, 0.96 "OLED display, I2C, UART, RTC, battery and microSD socket, buzzer
SEEEDUINO-XIAO-EXPBRD / Seeeduino XIAO expansion board, 0.96
- OLED display: Visual data display without connecting to PC, which enables debug in a more efficient way, and builds application such as a sensor hub, data monitor system, .etc

- RESET button: No more jumper wire and short circuit, easy reset with just one click.

- SWD debug: SWD pin led out as male pin header, making debugger connection and firmware download much easier.

- High precision RTC: High precision real-time clock with battery backup, enable maintain accurate time when the main power is turned off.

- Expandable memory: With a MicroSD card slot on the back, no worry about the memory limit any more when adding libraries and using circuit python.

- User button: Besides the RESET button, also provide another user-defined button.

- Passive buzzer: Same passive buzzer on Wio Terminal, with which you could change the PMW frequency to award different beep sound to get a "buzzer music".

- Grove connectors: All pin led out, plug and play grove connectors support common data protocols (Grove IIC2, Grove UART1, A0/D0 Grove*1)

- Lipo Battery Charging: JST2.0mm standard lipo battery connector and battery management system, supports both USB and lipo battery power supply, and easy onboard battery recharge.

- 5V servo connector: 5V output led out to male header for 5V servo and sensor connection.
Manufacturer Seeed Studio
Supply voltage 5V DC,
3.7V Lithium Battery
Interface I2C,
UART,
A/D
Type of display used 0.96" OLED
Compatible memorycards microSD
Battery type CR1220
Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.429.46
Quantity (pcs):

Unit price excl. VAT
1+ 12 454 Ft
5+ 11 785 Ft
10+ 11 563 Ft
20+ 11 352 Ft
50+ 11 044 Ft
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click icon on top menu.

Availability Qu.
In stock > 2
10-15 workdays > 2000
