XL4015-3D-STDN-PSU

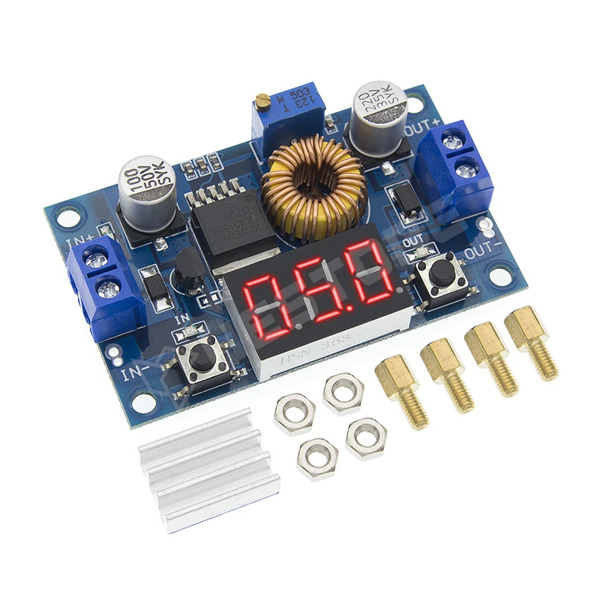

DC-DC 5A step down PSU module, 3digits display
Properties:
- Built-in voltmeter
- max. 5A output current
- The voltage measurement can be easily calibrated.
Parameters:
- Input voltage: 8...36V
- Output voltage: 1.25...32V infinitely adjustable
- Output current: max 5A
- Operating temperature: -40...85 ° C
- Operating frequency: 150KHz
- Efficiency: 90%
- Mounting: 4 M3 spacers + nut
- Dimensions: 66x36x14mm
To fine tune the output voltage measurement, set the voltmeter to "OUT" and then hold down the right button until the display starts flashing. Use the push buttons to set the displayed voltage to 0.1V. As soon as the display shows the desired value, press and hold the right button until the flashing stops.
To fine tune the input voltage measurement, perform the above operation with the voltage meter in the "IN" state.
Comment:
If the output and input voltages are the same in the display, turn the knob counterclockwise for 15-20 turns.
- Built-in voltmeter
- max. 5A output current
- The voltage measurement can be easily calibrated.
Parameters:
- Input voltage: 8...36V
- Output voltage: 1.25...32V infinitely adjustable
- Output current: max 5A
- Operating temperature: -40...85 ° C
- Operating frequency: 150KHz
- Efficiency: 90%
- Mounting: 4 M3 spacers + nut
- Dimensions: 66x36x14mm
To fine tune the output voltage measurement, set the voltmeter to "OUT" and then hold down the right button until the display starts flashing. Use the push buttons to set the displayed voltage to 0.1V. As soon as the display shows the desired value, press and hold the right button until the flashing stops.
To fine tune the input voltage measurement, perform the above operation with the voltage meter in the "IN" state.
Comment:
If the output and input voltages are the same in the display, turn the knob counterclockwise for 15-20 turns.
| Manufacturer partno | HW-316 |
|---|
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.421.12
Quantity (pcs):
Unit price excl. VAT
| 1+ | 1 228 Ft |
|---|---|
| 5+ | 1 018 Ft |
| 10+ | 981 Ft |
| 20+ | 954 Ft |
| 50+ | 922 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 50 |
| 10-15 workdays | > 2000 |
