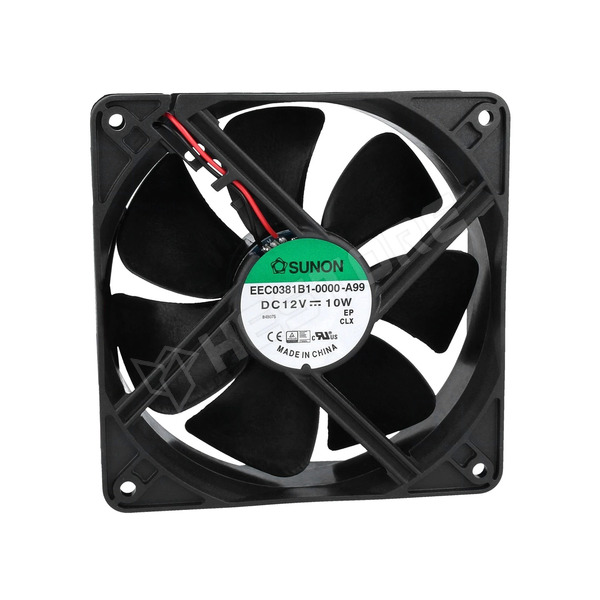

EEC0381B1-0000-A99

Fan, DC, 12V DC, 120x120x38mm, ball bearing, 234.4m³/h, shaft, axial

EEC0381B1-0000-A99 / Fan, DC, 12V DC, 120x120x38mm, ball bearing, 234.4m<sup>3</sup>/h, shaft, axial (EEC0381B1-0000-A99 / SUNON)

Manufacturer partno	EEC0381B1-0000-A99
Manufacturer	SUNON
Weight	214g
Operating voltage	6...13.8V
Operating temperature	-10...70°C
Supply voltage	12V DC
Enclosure material	thermoplastic
Current rating	0.8A
Leads	2 leads
Min. insulation resistance	10MΩ
IP rating	A
Flammability rating	UL94V-0
Wire size	24AWG
Cable length	310mm
Type of fan	DC
Fan dimensions	120x120x38mm
Power consumption	9.6W
Fan efficiency	234.4m³/h
Noise level	48dBA
Rotational rate/speed	3100 (±10%)rpm
Current and power consumption tolerance	±15%
Impeller material	thermoplastic
Static pressure	9.14mm H₂O
Fan motor	brushless DC
Additional functions	Autorestart
Kind of fan	axial, shaft
Kind of Bearing	ball bearing
