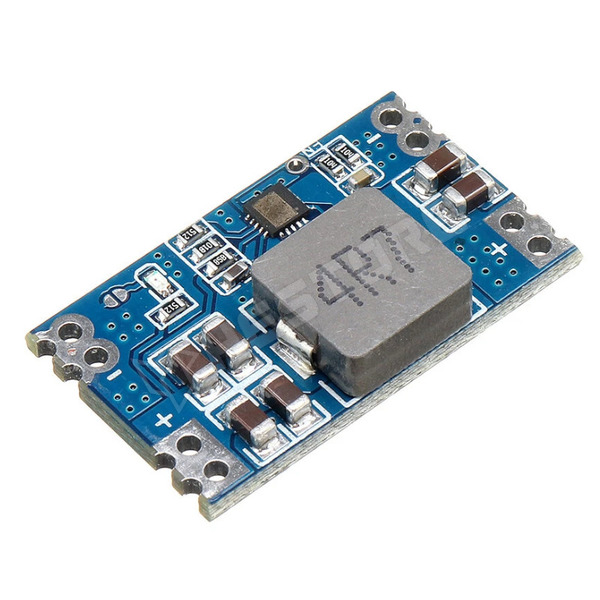

MINI560-12V-5A

DC-DC step down power supply module, 12V

Output voltage	12V DC
Input voltage	14...20V DC
Operating temperature	-40...85°C
Output current	5A
Power supply/converter features	step down, non-isolated, Long-distance running over 3A requires heat dissipation
Efficiency	98.1%
Dimensions	29 x 18 x 5.4mm
Operating frequency	500kHz

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.423.77

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 217 Ft
5+	1 024 Ft
10+	986 Ft
20+	958 Ft
50+	927 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
10-15 workdays	> 2000
