STPDWN-3.3V-3A

Name: STPDWN-3.3V-3A
Brand: HESTORE
SKU: 100.423.64
Availability: InStock

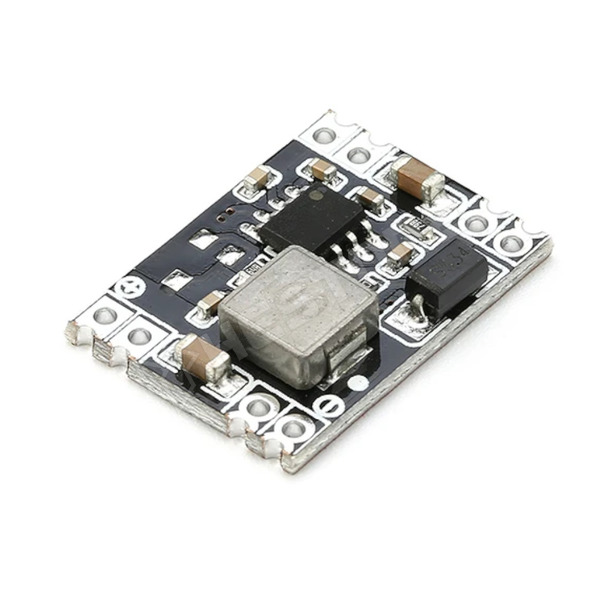

3.3V fixed output, 3A step down power module

Input voltage: 7 - 26V
Output voltage: 3.3V
Output current: 3A (Max), the current should be controlled within 1.6A for working long hours
Conversion efficiency: 96% (Max)
Output ripple: < 30mV
Operating temperature: -40℃ - 85℃
Dimension: 22.3 x 17 x 4.2mm (L x W x H)

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.423.64

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	493 Ft
5+	314 Ft
10+	288 Ft
20+	273 Ft
50+	260 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 20
10-15 workdays	> 2000
