R66DD4100DQ7AJ

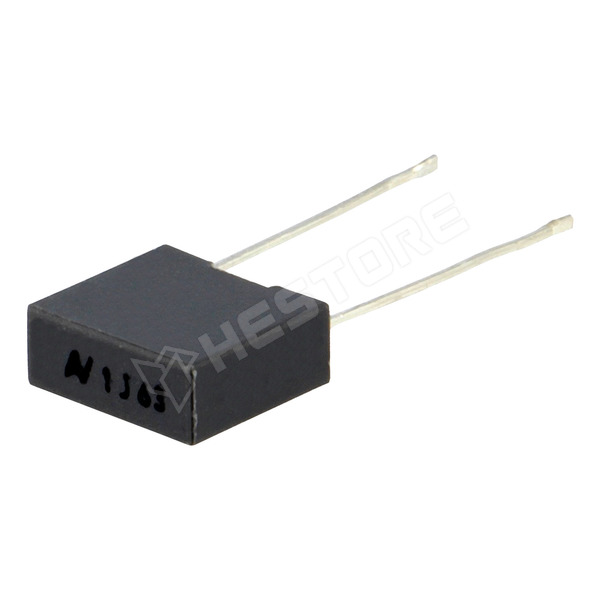

Foil capacitor, polyester, 1µF, 40V AC, 63V DC, 7.5mm, THT

Manufacturer partno	R66DD4100DQ7AJ
Manufacturer	KEMET
Series	R66
Mounting	THT
Tolerance	±5%
Kind of package	tape
Type of capacitor	polyester
Capacitance	1µF
Terminal pitch	7.5mm
Operating temperature	-55...105°C
Body dimensions	10x4x9mm
Climate class	55/105/56 IEC 60068-1
Max. operating voltage	63V DC, 40V AC
Conform to the norm	AEC-Q200
Pulse resistance	120V/μs
Alias	66DD4100DQ7AJ

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.423.57

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	320 Ft
5+	200 Ft
10+	177 Ft
20+	163 Ft
50+	153 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 500
