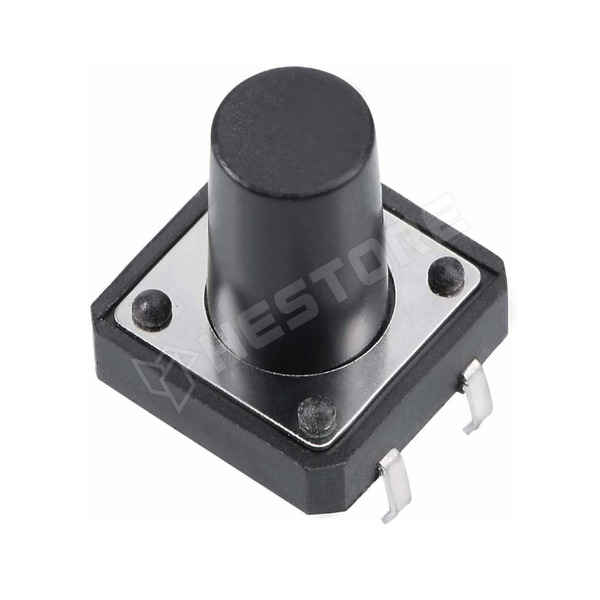

TACTR-12x12x12

Push button, microswitch TACT, SPST-NO, THT

Mounting	THT
Terminal pitch	5x12.5mm
Operating temperature	-25...70°C
Body dimensions	12x12mm
Leads	straight, for PCB
Min. insulation resistance	100mΩ, 100MΩ
Type of switch	microswitch, microswitch TACT
Stable positions number	1-position
DC contacts rating	0.05 A / 12 VDC
Switching method	OFF-(ON)
Contacts configuration	SPST-NO
Soldering temperature	250°C
Max. contact resistance:	50mΩ
Actuator colour	black
Button height	12mm
Button shape	round
DC contacts rating @R	0.05A / 12V DC
Összes pozíciók száma	2
Light	none

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.420.39

Add to favorites

Quantity (pcs):

Unit price gross (netto)

1+	£ 0.309 (£ 0.243 +VAT)
5+	£ 0.193 (£ 0.152 +VAT)
10+	£ 0.133 (£ 0.104 +VAT)
20+	£ 0.102 (£ 0.080 +VAT)
50+	£ 0.082 (£ 0.065 +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 450
10-15 workdays	> 2000
