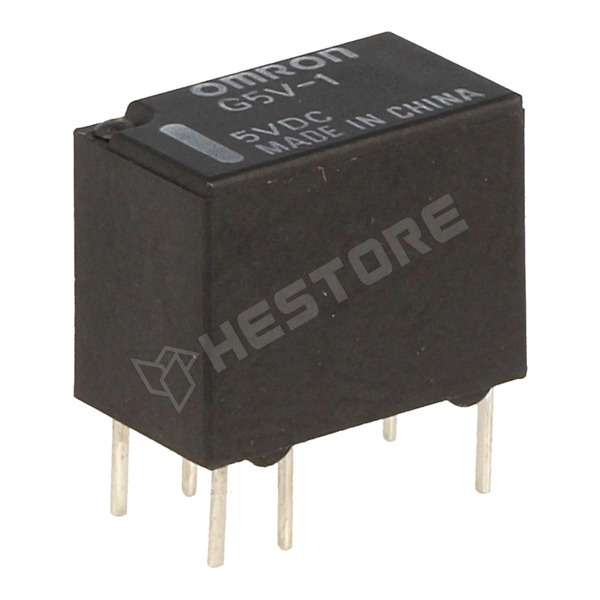

G5V-1 5VDC

Relay, SPDT, 5V DC, 0.5A / 125V AC, 1A / 24V DC

Manufacturer partno	G5V-1 5VDC
Manufacturer	OMRON OCB
Mounting	PCB
Terminal pitch	2.54mm
Operating temperature	-30...70°C
Body dimensions	12.5x7.5x10mm
Body dimensions	12.5x7.5x10mm
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	5V DC
Contact current max.	1A
Switched voltage	max. 60V DC, max. 125V AC
Relay variant	subminiature
Coil resistance	166.7Ω
Coil power consumption	150mW
Relay series	G5V-1
Contact resistance	100mΩ
Coil current	30mA
DC contacts rating @R	1A / 24V DC
AC contacts rating @R	0.5A / 125V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.415.22

Add to favorites

Quantity (pcs):

Packing:
25 pcs / tube

Unit price excl. VAT

1+	913 Ft
5+	716 Ft
10+	684 Ft
25+	662 Ft
50+	638 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 5000
