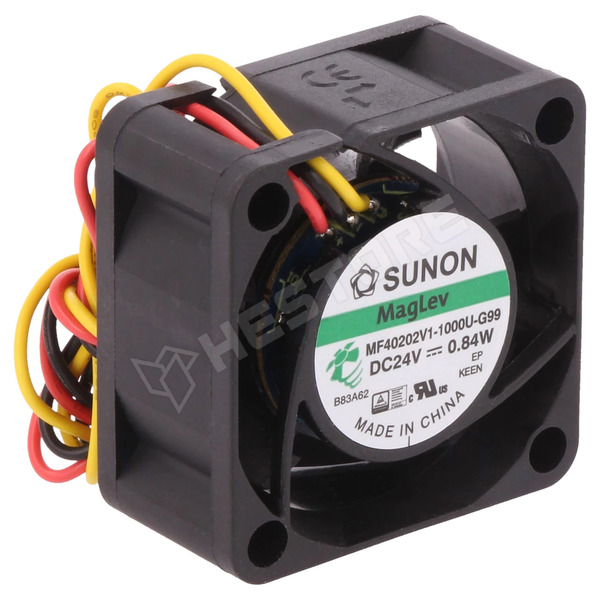

MF40202V1-1000U-G99
Fan, DC, 24V DC, 40x40x20mm, Vapo, 15.04m3/h, shaft, axial
| Manufacturer partno | MF40202V1-1000U-G99 |
|---|---|
| RoHS | yes |
| Manufacturer | SUNON |
| Weight | 29g |
| Operating voltage | 8...27.6V |
| Operating temperature | -10...70°C |
| Supply voltage | 24V DC |
| Enclosure material | thermoplastic |
| Current rating | 0.032A |
| Leads | 3 leads |
| Min. insulation resistance | 10MΩ |
| IP rating | A |
| Flammability rating | UL94V-0 |
| Wire size | 26AWG |
| Cable length | 305mm |
| Type of fan | DC |
| Fan dimensions | 40x40x20mm |
| Power consumption | 0.77W |
| Fan efficiency | 15.04m3/h |
| Noise level | 25.5dBA |
| Rotational rate/speed | 7000rpm |
| Impeller material | thermoplastic |
| Static pressure | 5.59mm H2O |
| Fan motor | brushless DC |
| Additional functions | Autorestart |
| Signal output | F type |
| Kind of fan | axial, shaft |
| Kind of Bearing | Vapo |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.412.04
Quantity (pcs):
Unit price excl. VAT
| 1+ | 2 323 Ft |
|---|---|
| 5+ | 2 069 Ft |
| 10+ | 2 013 Ft |
| 20+ | 1 968 Ft |
| 50+ | 1 910 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| 3 workdays | > 150 |
