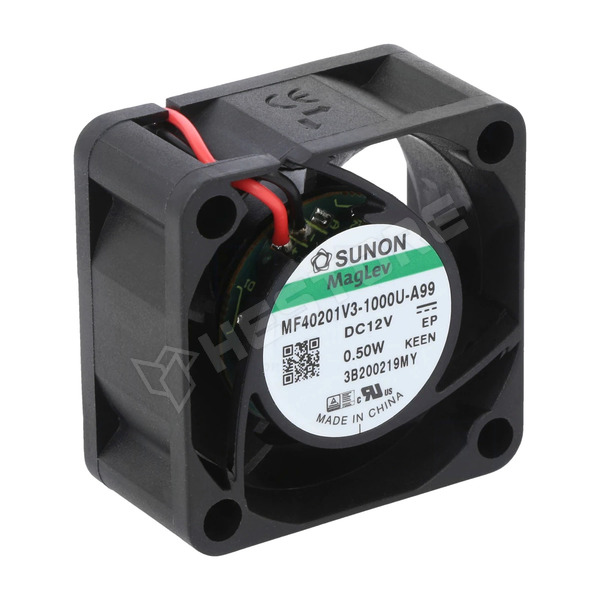

MF40201V3-1000U-A99

Fan, DC, 12V DC, 40x40x20mm, Vapo, 10.69m³/h, shaft, axial

MF40201V3-1000U-A99 / Fan, DC, 12V DC, 40x40x20mm, Vapo, 10.69m<sup>3</sup>/h, shaft, axial (MF40201V3-1000U-A99 / SUNON)

Manufacturer partno	MF40201V3-1000U-A99
Manufacturer	SUNON
Weight	20g
Operating voltage	4.5...13.8V
Operating temperature	-10...70°C
Supply voltage	12V DC
Enclosure material	thermoplastic
Current rating	38mA
Leads	2 leads
Min. insulation resistance	10MΩ
IP rating	A
Flammability rating	UL94V-0
Cable length	0.305m
Type of fan	DC
Fan dimensions	40x40x20mm
Power consumption	460mW
Fan efficiency	10.69m³/h
Noise level	16.5dBA
Rotational rate/speed	5000rpm
Impeller material	thermoplastic
Fan motor	brushless DC
Additional functions	Autorestart
Kind of fan	axial, shaft
Kind of Bearing	Vapo

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.411.34

Add to favorites

Quantity (pcs):

Packing:
100 pcs / carton

Unit price excl. VAT

1+	2 358 Ft
5+	2 102 Ft
10+	2 046 Ft
20+	2 000 Ft
50+	1 941 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 3000
