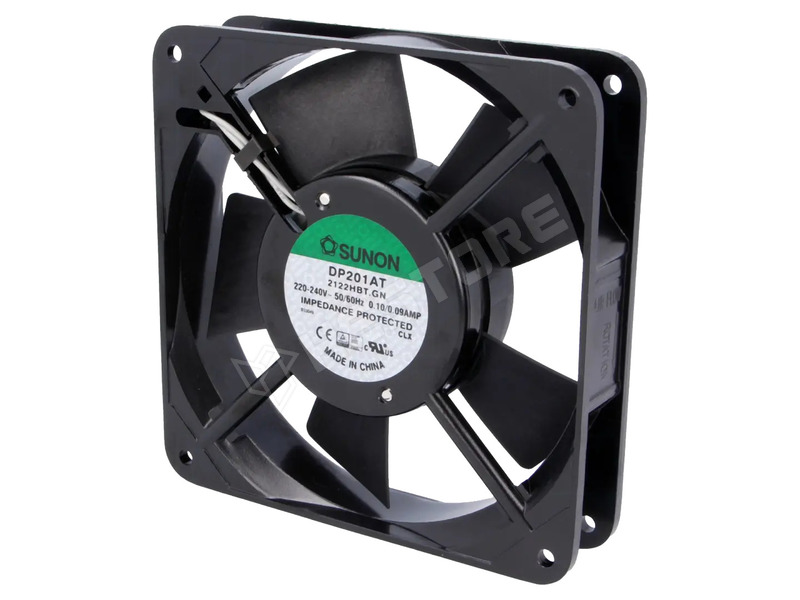

DP201AT2122HBT.GN

Fan, AC, 230V AC, 120x120x25mm, ball bearing, 112 (±7%)m³/h, shaft, axial

DP201AT2122HBT.GN / Fan, AC, 230V AC, 120x120x25mm, ball bearing, 112 (±7%)m<sup>3</sup>/h, shaft, axial (DP201AT2122HBT.GN / SUNON)

Manufacturer partno	DP201AT2122HBT.GN
RoHS	yes
Manufacturer	SUNON
Frequency	50Hz
Weight	330g
Operating temperature	-10...70°C
Supply voltage	230V AC
Enclosure material	Aluminium
Current rating	90mA
Leads	2,8x0,3mm connectors
Min. insulation resistance	500MΩ
IP rating	B
Flammability rating	UL94V-0
Type of fan	AC
Fan dimensions	120x120x25mm
Power consumption	19W
Fan efficiency	112 (±7%)m³/h
Noise level	44dBA
Rotational rate/speed	2150rpm
Impeller material	thermoplastic
Kind of fan	axial, shaft
Kind of Bearing	ball bearing

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.408.14

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	4 358 Ft
5+	4 020 Ft
10+	3 931 Ft
20+	3 853 Ft
50+	3 744 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 1000
