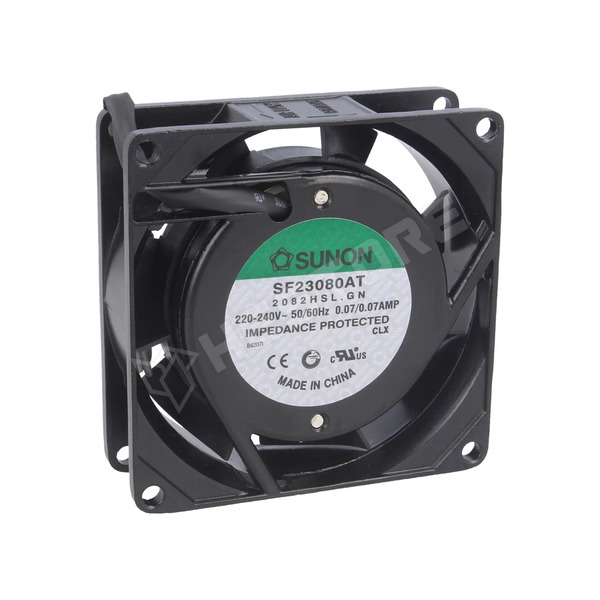

SF23080AT2082HSL.GN
Fan, AC, 230V AC, 80x80x25mm, slide bearing, 28.9 (±5%)m3/h, shaft
| Manufacturer partno | SF23080AT2082HSL.GN |
|---|---|
| RoHS | no |
| Manufacturer | SUNON |
| Size | 80x80x25 |
| Type | AC |
| Frequency | 50Hz |
| Voltage | 230V |
| Weight | 260g |
| Operating temperature | -10...70°C |
| Supply voltage | 230V AC |
| Enclosure material | Aluminium |
| Current rating | 70mA |
| Leads | 2 leads |
| Min. insulation resistance | 500MΩ |
| IP rating | B |
| Flammability rating | UL94V-0 |
| Wire size | 24AWG |
| Cable length | 330mm |
| Type of fan | AC |
| Fan dimensions | 80x80x25mm |
| Power consumption | 14W |
| Fan efficiency | 28.9 (±5%)m3/h |
| Noise level | 29dBA |
| Rotational rate/speed | 2300ford/min |
| Current and power consumption tolerance | ±15% |
| Impeller material | thermoplastic |
| Static pressure | 3.05mm H2O |
| Kind of fan | shaft |
| Kind of Bearing | slide bearing |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.326.45
Quantity (pcs):
Unit price excl. VAT
| 1+ | € 9.163 |
|---|---|
| 5+ | € 8.386 |
| 10+ | € 8.191 |
| 20+ | € 8.023 |
| 50+ | € 7.795 |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 2 |
| 3 workdays | > 3000 |
