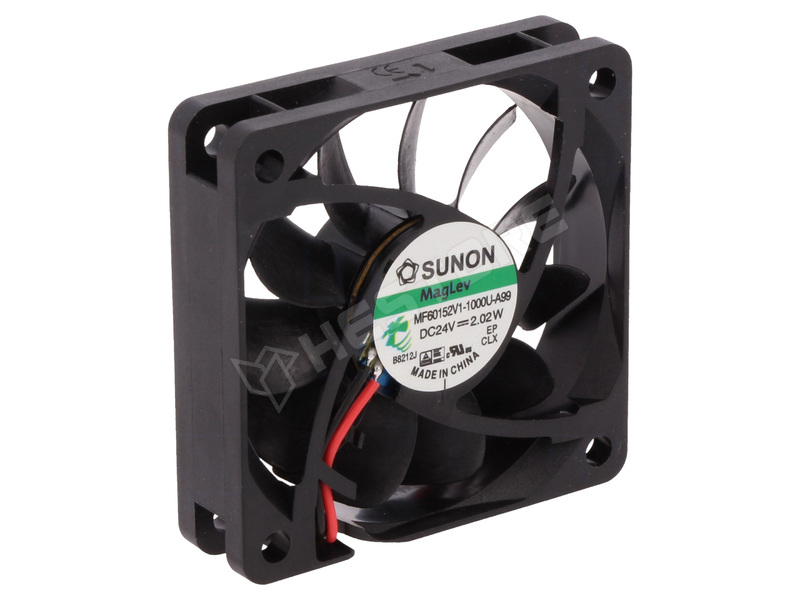

MF60152V1-1000U-A99

Fan, DC, 24V DC, 60x60x15mm, Vapo, 44.62m³/h, shaft, axial

MF60152V1-1000U-A99 / Fan, DC, 24V DC, 60x60x15mm, Vapo, 44.62m<sup>3</sup>/h, shaft, axial (MF60152V1-1000U-A99 / SUNON)

Manufacturer partno	MF60152V1-1000U-A99
RoHS	yes
Manufacturer	SUNON
Weight	35.5g
Operating voltage	8...27.6V
Operating temperature	-10...70°C
Supply voltage	24V DC
Enclosure material	thermoplastic
Current rating	0.075A
Leads	2 leads
Min. insulation resistance	10MΩ
IP rating	A
Flammability rating	UL94V-0
Wire size	26AWG
Cable length	290mm
Type of fan	DC
Fan dimensions	60x60x15mm
Power consumption	1.8W
Fan efficiency	44.62m³/h
Noise level	34.2dBA
Rotational rate/speed	4700rpm
Impeller material	thermoplastic
Fan motor	brushless DC
Additional functions	Autorestart
Kind of fan	axial, shaft
Kind of Bearing	Vapo
