1835.3112

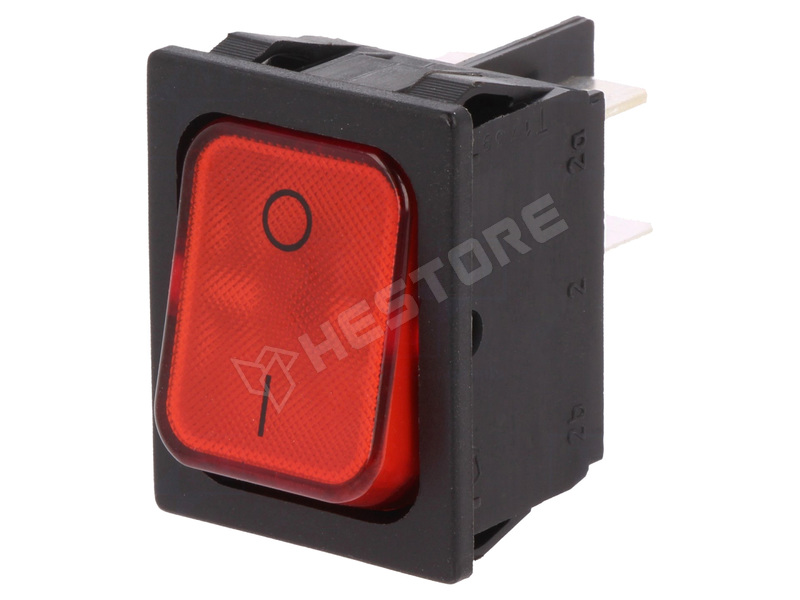

Switch, DPST, OFF-ON, 250V, 20A, IP40, red

Manufacturer partno	1835.3112
Manufacturer	Marquardt
Operating temperature	-20...85°C
Body colour	black
Mounting hole diameter	30.6x22mm
Related items	203.201.011
Contact plating	silver plated
Shape	rectangular
Dimensions	31.5x25x16.2mm
Leads	6,3x0,8mm connectors
Illumination	filament lamp 230V
IP rating	IP40
Type of switch	ROCKER
Stable positions number	2
Number of positions	2
Switching method	OFF-ON
Contacts configuration	DPST
Max. contact resistance:	100mΩ
Actuator colour	red
Button marking	I-O
Button shape	rectangular
Manufacturer series	1835
Backlight colour	red
Panel thickness	max. 3mm
AC contacts rating @R	20A / 250V AC
AC contacts rating @L	4A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.403.77

Add to favorites

Quantity (pcs):

Packing:
150 pcs / carton

Unit price excl. VAT

1+	1 911 Ft
5+	1 673 Ft
10+	1 624 Ft
20+	1 586 Ft
50+	1 538 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 3000
