Main category » Enclosures » Plastic enclosures » DIN-rail enclosures »

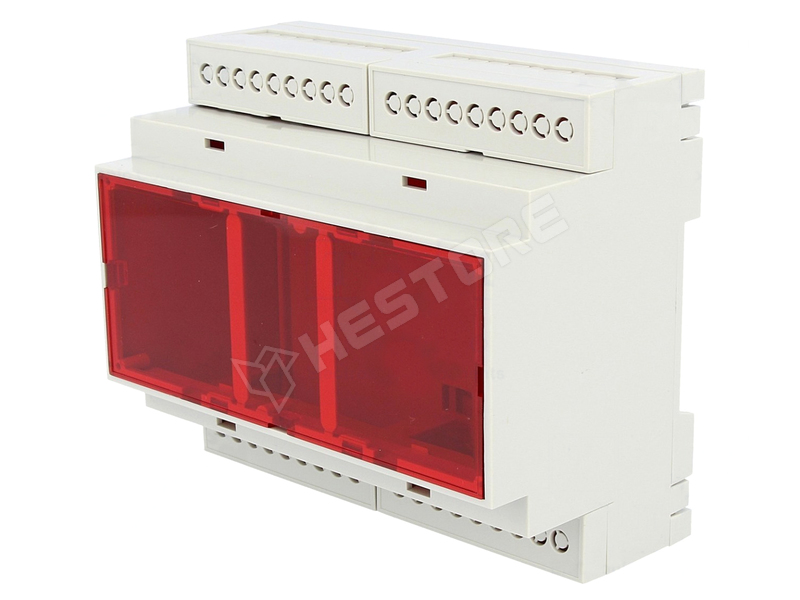

D6MG-IRC

Enclosure, for DIN rail mounting, Number of modules: 6, 106.25mm, 90.2mm, 57.5mm, grey, ABS

Manufacturer partno	D6MG-IRC
Manufacturer	GAINTA
Type of enclosure	for DIN rail mounting
Dimension X	106.25mm
Dimension Y	90.2mm
Dimension Z	57.5mm
Enclosure material	ABS
Body colour	grey
Flammability rating	UL94V-0
Panel colour	red
Number of modules	6

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.399.91

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 172 Ft
5+	1 924 Ft
10+	1 870 Ft
20+	1 828 Ft
50+	1 773 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 20
