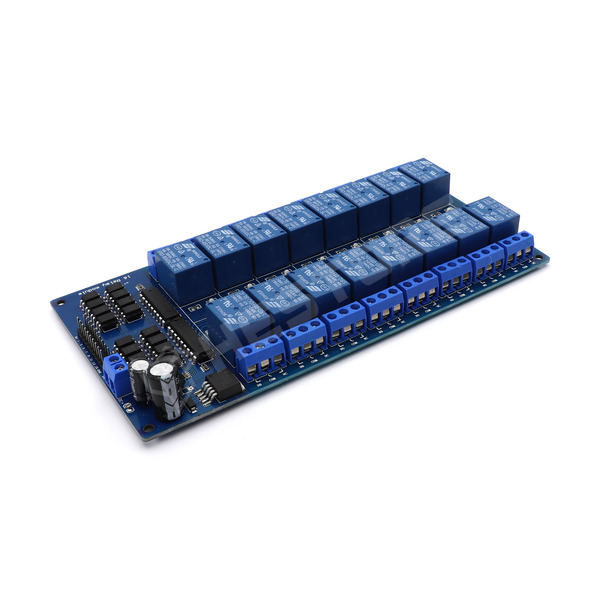

RELD-16CH-5V

Universal 16 channel relay module, 5V, opto-isolated, LM2576 power supply, low level trigger

Size	180 x 90 x 20mm
Number of channels	16
Supply voltage	5V DC
Switched voltage	250V AC
Switched current	10A
Control voltage	5V DC
Type of optocoupler	PC817
Relay out	NC-COM-NO
Control signal	active low

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.398.99

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	7 221 Ft
5+	6 765 Ft
10+	6 629 Ft
20+	6 504 Ft
50+	6 325 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
10-15 workdays	> 2000
