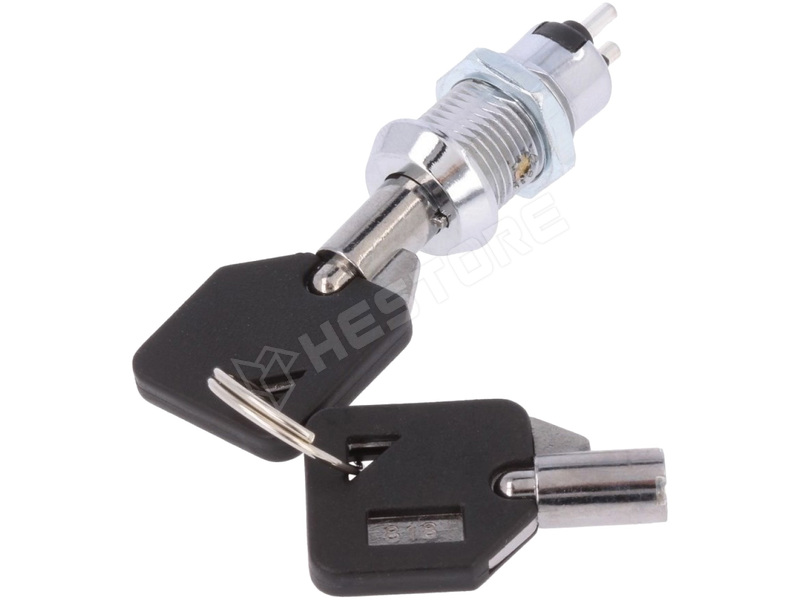

KS-42

Key switch, OFF-(ON)

RoHS	yes
Number of terminals	2
Mounting hole diameter	Ø12mm
Contact plating	silver plated
Mechanical rotation angle	90°
Type of switch	key switch
Stable positions number	1-position
Number of positions	2
Switching method	OFF-(ON)
Body material	zinc alloy
Contacts configuration	SPST
Switches features	the key can be removed at left limit position, key with the random code
Overall length	31mm
Terminals plating	silver plated
Kind of wrench	unsymmetrical
AC contacts rating @R	1A / 125V AC
Key shape	round

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.397.48

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 509 Ft
5+	2 247 Ft
10+	2 188 Ft
20+	2 140 Ft
50+	2 077 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
