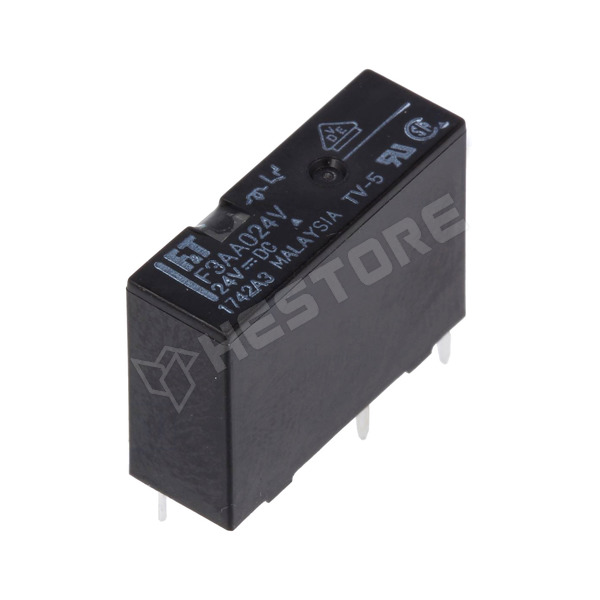

FTR-F3AA024V

Relay, SPST-NO, 24V DC, 5A / 250V AC, 5A / 30V DC

Manufacturer partno	FTR-F3AA024V
Manufacturer	FUJITSU
Mounting	PCB
Terminal pitch	7mm
Operating temperature	-40...85°C
Contact material	AgSnO₂
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	5A
Switched voltage	max. 150V DC, max. 277V AC
Relay variant	miniature
Coil resistance	2.06kΩ
Relay series	FTR-F3
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	5A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.395.93

Add to favorites

Quantity (pcs):

Packing:
50 pcs / tube

Unit price excl. VAT

1+	648 Ft
5+	462 Ft
10+	434 Ft
20+	416 Ft
50+	399 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 4000
