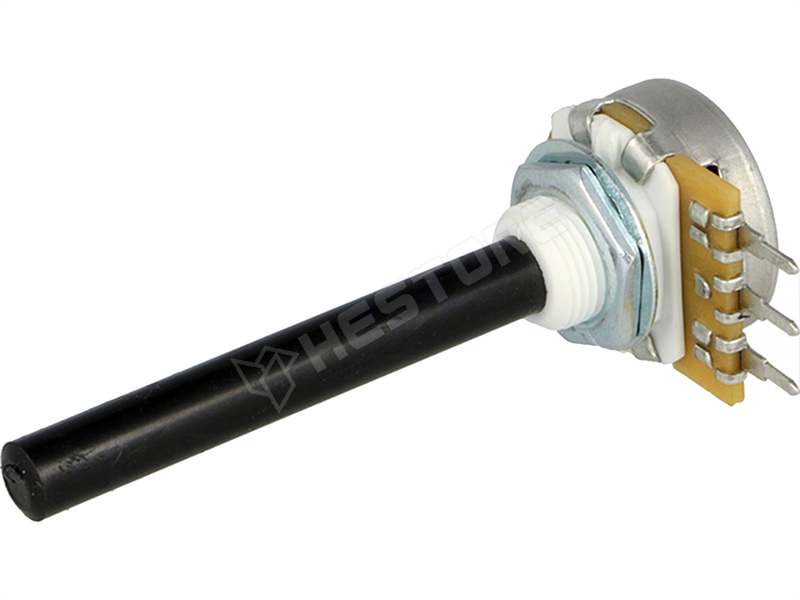

PC20BU-10K-LOG

Potenciométer, 6mm

RoHS	yes
Manufacturer	OMEG
Power	0.2W
Resistance	10kΩ
Characteristics	logarithmic
Shaft diameter	6mm
Mounting	THT
Tolerance	±20%
Terminal pitch	5.08mm
Body dimensions	Ø20x10mm
Max. operating voltage	500V DC
Type of potentiometer	axial, shaft
Track material	plastic
Shaft surface	smooth
Shaft length	43mm
Thread length	7mm
Mechanical rotation angle	300°
Potentiometer features	mono
Kind of potentiometer	single turn
L shaft length	50mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.395.57

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	€ 4.397
5+	€ 3.814
10+	€ 3.698
20+	€ 3.608
50+	€ 3.497

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
