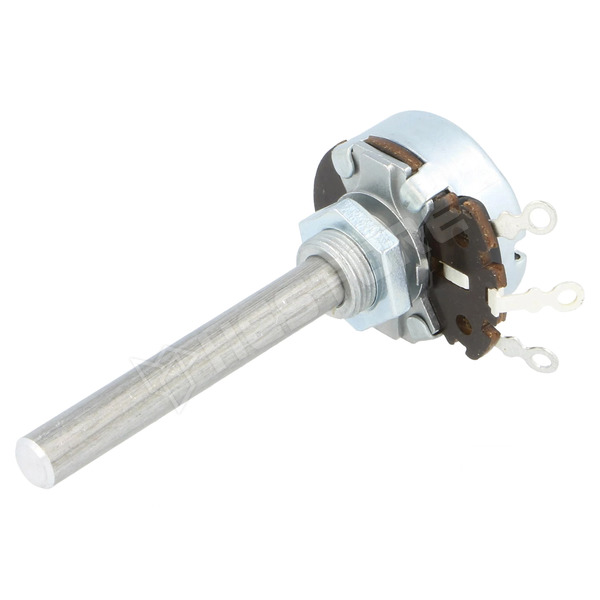

POT4W-10K

Potentiometer, wire, 10kΩ, 6mm shaft, linear

Manufacturer partno	3104607990
Manufacturer	AB Elektronik
Power	4W
Resistance	10kΩ
Characteristics	linear
Shaft diameter	6mm
Tolerance	±10%
Max. operating voltage	500V DC
Type of potentiometer	axial
Track material	wire-wound, wire
Shaft surface	smooth
Shaft length	42mm
Thread length	8mm
Mechanical rotation angle	300 ±10°
Electrical rotation angle	280 ±5°
Fastening thread	M10x0,75
Linearity tolerance	±2%
Kind of potentiometer	single turn
L shaft length	50mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.269.27

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	3 417 Ft
5+	3 117 Ft
10+	3 044 Ft
20+	2 981 Ft
50+	2 895 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 500
