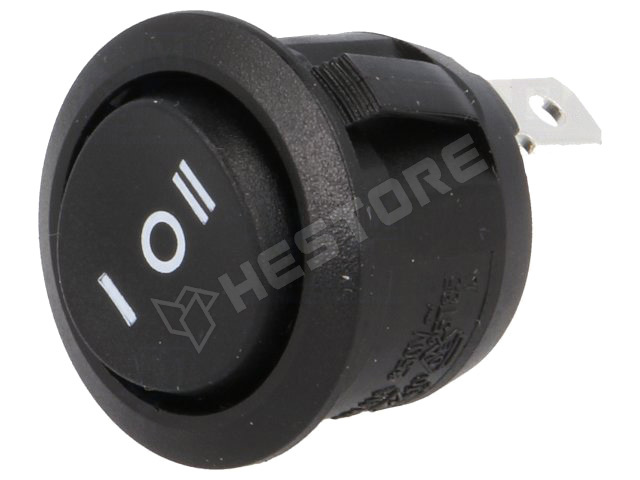

R13-112D-BB-7D

Kapcsoló, 3 pozíció, 10A/250VAC, 50mΩ

Manufacturer partno	R13-112D-BB-7D
RoHS	yes
Manufacturer	SCI
Operating temperature	-20...85°C
Shape	round
Leads	4,8x0,8mm connectors
Type of switch	ROCKER
Stable positions number	3-position
Switching method	ON-OFF-ON
Contacts configuration	SP3T
Mounting hole diameter	20.2mm
Max. contact resistance:	50mΩ
Flammability rating	UL94V-2
Body colour	black
Electrical life	6000cycles
Actuator colour	black
Button marking	II-O-I
Backlight colour	none
Panel thickness	max 3mm
AC contacts rating @R	10A / 250V AC
Összes pozíciók száma	3
Light	none

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.390.54

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	649 Ft
5+	463 Ft
10+	435 Ft
20+	417 Ft
50+	400 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 7500
