LIYV-1x0.14-TR-HELU

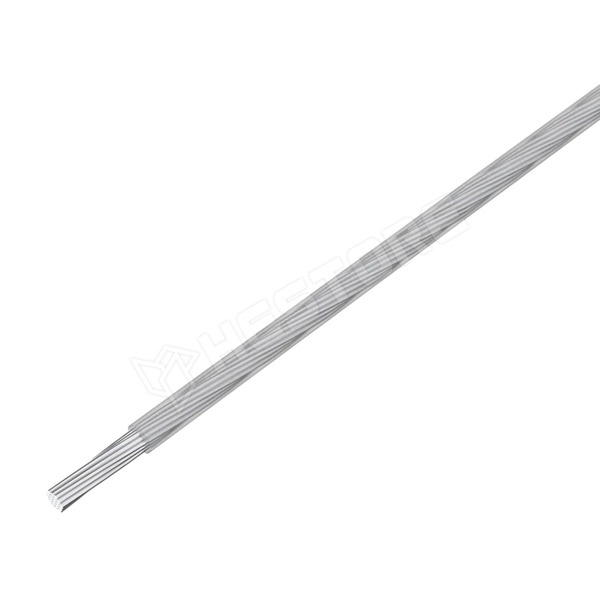

Wire, LiYv, stranded, tinned copper, 1x0.14mm2, PVC, transparent

Manufacturer partno	26416
RoHS	yes
Manufacturer	HELUKABEL
Number of cores	1
Diameter	1 x 0.14mm2
Operating temperature	-30...80°C
Rated voltage	500V
Wire insulation material	PVC
Insulation colour	transparent, transparent
Core section	0.14mm²
Kind of core	tinned, Cu
Type of wire	mounting, assembly
Core structure	stranded
Cable external diameter	1.1mm
Cable application	for environments with high humidity, switching stations, control cabinets
Flexibility class	5
Kind of wire	LiYv
CPR standard	no classification
Kind of material	no flame propagation

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.389.63

Add to favorites

Quantity (m):

Packing:
100 m / reel

Unit price excl. VAT

1+	157 Ft
10+	98,00 Ft
50+	80,55 Ft
100+	77,14 Ft
200+	74,79 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 100
3 workdays	> 500
