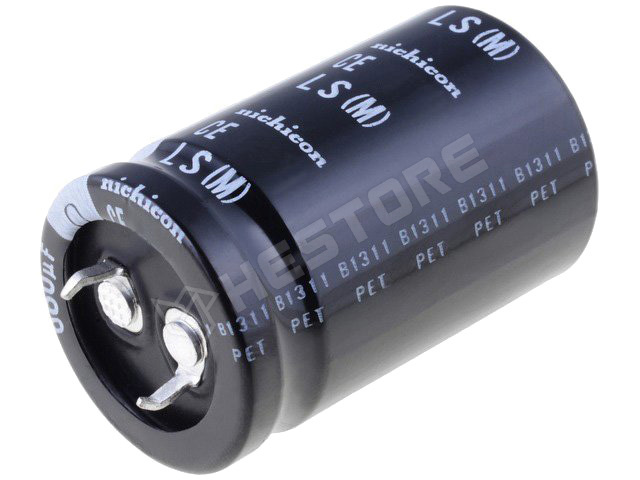

680uF / 400V

Capacitor, electrolytic, 680µF, 400V DC, long life, low impedance, high ripple current, Ø35 x 50mm, -25...85°C

Manufacturer partno	LLS2G681MELC
RoHS	yes
Manufacturer	NICHICON
Mounting	THT
Tolerance	±20%
Type of capacitor	electrolytic
Capacitance	680µF
Operating voltage	400V DC
Operating temperature	-25...85°C
Body dimensions	Ø35 x 50mm, Ø35x50mm
Service life	3000h
Capacitors features	long life, low impedance, high ripple current
Leads	SNAP-IN
Leakage current	1.56mA
Max. operating current	3.1A

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.386.50

Add to favorites

Quantity (pcs):

Unit price gross (netto)

1+	6 625 Ft (5 216 Ft +VAT)
5+	6 151 Ft (4 843 Ft +VAT)
10+	6 020 Ft (4 740 Ft +VAT)
20+	5 902 Ft (4 648 Ft +VAT)
50+	5 738 Ft (4 518 Ft +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 150
