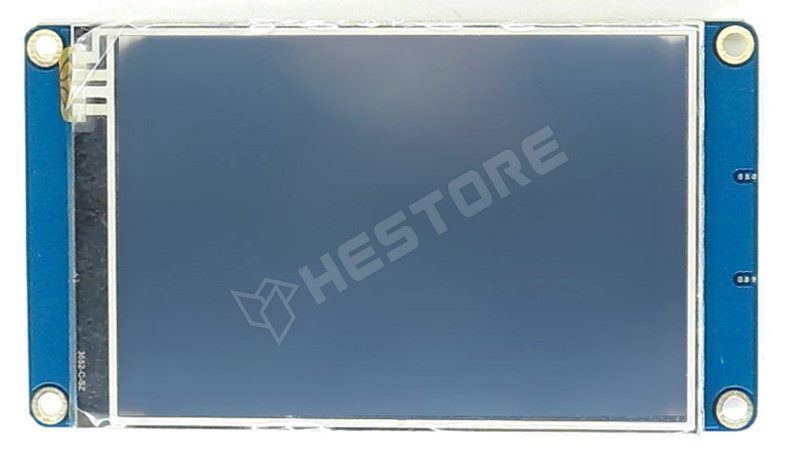

NX4832T035
Nextion, 3.5 inch, Touch display, with controller and serial port
480 x 320 Resolution
RGB 65K true to life colours
TFT screen with integrated resistive touch panel
4 pin TTL serial interface
16M Flash memory for User Application Code and Data
On board micro-SD card slot for firmware upgrade
Visual Area: 73.44mm(L)×48.96mm(W)
Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
5V 500mA DC recommended power supply
5V 145mA power consumption
RGB 65K true to life colours
TFT screen with integrated resistive touch panel
4 pin TTL serial interface
16M Flash memory for User Application Code and Data
On board micro-SD card slot for firmware upgrade
Visual Area: 73.44mm(L)×48.96mm(W)
Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
5V 500mA DC recommended power supply
5V 145mA power consumption
| Manufacturer | ITEAD |
|---|
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.383.09
Quantity (pcs):
Unit price excl. VAT
| 1+ | 17 021 Ft |
|---|---|
| 5+ | 16 164 Ft |
| 10+ | 15 868 Ft |
| 20+ | 15 582 Ft |
| 50+ | 15 162 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 15 |
| 10-15 workdays | > 2000 |
