NX3224T024

Name: NX3224T024
Brand: ITEAD
SKU: 100.383.06
Availability: InStock

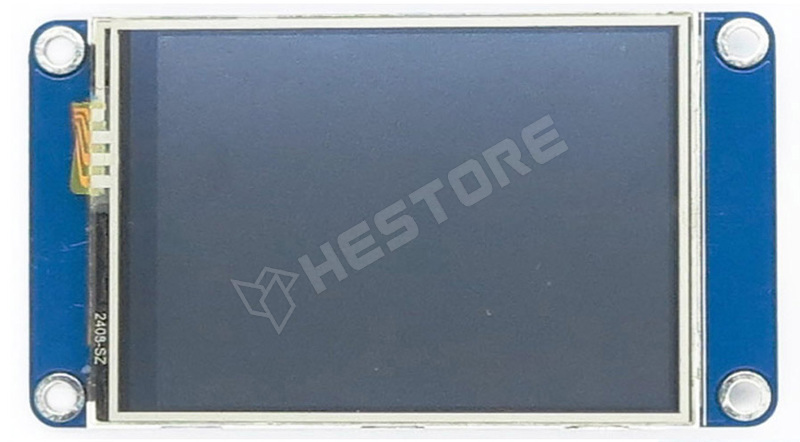

Nextion, 2.4 inch, Touch display, with controller and serial port

320 x 240 Resolution
Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
RGB 65K true to life colours
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
4M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area: 36.72mm(L)×48.96mm(W)
Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
5V90mA power consumption
Generic using for all Arduino or Raspberry Pi project

Manufacturer	ITEAD

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.383.06

Add to favorites

Quantity (pcs):

Unit price gross (netto)

1+	13 448 Ft (10 589 Ft +VAT)
5+	12 694 Ft (9 996 Ft +VAT)
10+	12 452 Ft (9 804 Ft +VAT)
20+	12 222 Ft (9 624 Ft +VAT)
50+	11 890 Ft (9 362 Ft +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
10-15 workdays	> 2000
