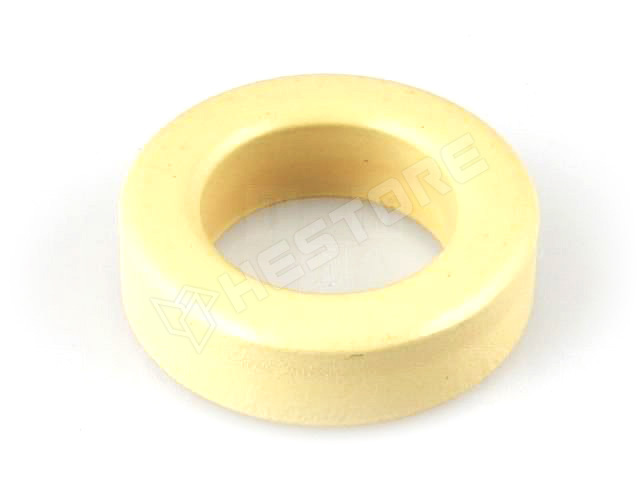

TX42/26/13-3E25

Ferrite toroidal

Manufacturer partno	TX42/26/13-3E25
RoHS	yes
Manufacturer	FERROXCUBE
Weight	53g
Length	13mm
Outside diameter	42.1mm
Internal diameter	25.9mm
Type of ferrite	toroidal
Core material	3E25
Ferrite features	rounded edges eliminate risk of wire damage, plastic coating
Ferrite application	RFI szűrőbe, impulzus transzformátorba, szélessávú transzformátorba
Indukció együttható AI	6425nH
A mag effektiv kapacitása (Ve)	9860mm³
A mag effektív metszete (Ae)	95.8mm²

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.382.74

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 566 Ft
5+	1 343 Ft
10+	1 299 Ft
20+	1 267 Ft
50+	1 227 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 250
