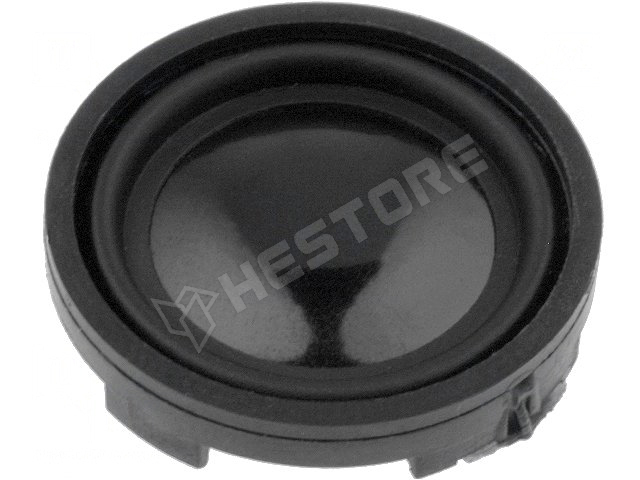

LD-SP-UM20/8A

Universal speaker, 8R, 1.5W, 20mm

RoHS	yes
Manufacturer	LOUDITY
Diameter	20mm
Impedance	8Ω
Power	1.5W
Operating temperature	-20...60°C
Resonant frequency	700Hz
Height	5.8mm
Type of sound transducer	loudspeaker, miniature
Sound level	83dB
Maximum power	2W
Impedance tolerance	±15%
Sound output tolerance	±3dB
Sound frequency	100...20000Hz
Kind of loudspeaker	multipurpose, mylar, miniature

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.380.90

Add to favorites

Quantity (pcs):

Packing:
50 pcs / tray

Unit price excl. VAT

1+	725 Ft
5+	536 Ft
10+	507 Ft
20+	488 Ft
50+	469 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 1000
