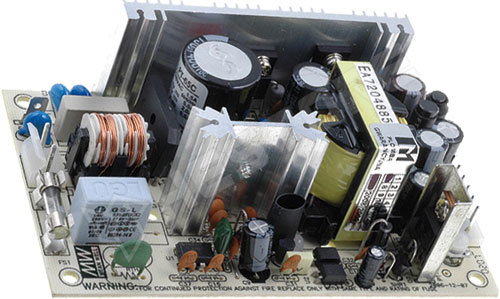

PT-65C

Industrial Power supply, 5/15/-15V, 65W

Manufacturer partno	PT-65C
RoHS	yes
Manufacturer	MEAN WELL
Power	65W
Weight	250g
Output voltage	5V DC, -15V, 15V DC
Series	PT-65
Mounting	mounting
Operating temperature	-10...60°C
Supply voltage	120...370V DC, 90...264V AC, 120...370V DC, 90...264V AC
Output current	5.5 (0.4...7)A
Type of power supply	open, switched-mode
Electrical connection	plug with 3,96mm pitch
Protection	overload, voltage growth, short-circuit
Number of outputs	3
Body dimensions	127 x 76.2 x 42mm
Power supply/converter features	rated parameters obtained at full load
Efficiency	77%
Output voltage 2	15V DC
Output current 2	2 (0.2...2.6)A
Tápegység fajtája	open
3-as kimenet feszültsége	-15V DC
3-es kimenet árama	0.5 (0...7)A
