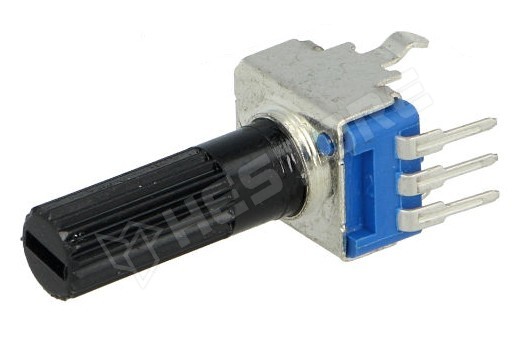

R9011-1-100K LIN

Potenciométer, 6mm tengely

Manufacturer partno	R9011-1-100K
RoHS	yes
Manufacturer	ALPHA, SR PASSIVES
Case	POM16
Power	125mW
Value	100k
Resistance	100kΩ
Characteristics	linear
Series	POM16
Lanes	mono
Mounting	THT
Tolerance	±20%
Terminal pitch	2.54mm
Body dimensions	10.4x11.8x6.8mm
Max. operating voltage	200V
Type of potentiometer	shaft
Track material	carbon
Control	vertical
Shaft diameter	6mm
Shaft surface	knurled
Shaft length	18mm
Mechanical rotation angle	300°
Potentiometer features	mono, without fastening thread
Shaft material	plastic
Kind of potentiometer	single turn
Korpusz anyaga	plastic

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.369.17

Add to favorites

Quantity (pcs):

Packing:
100 pcs / bag

Unit price excl. VAT

1+	341 Ft
5+	213 Ft
10+	189 Ft
20+	176 Ft
50+	165 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
3 workdays	> 2000
