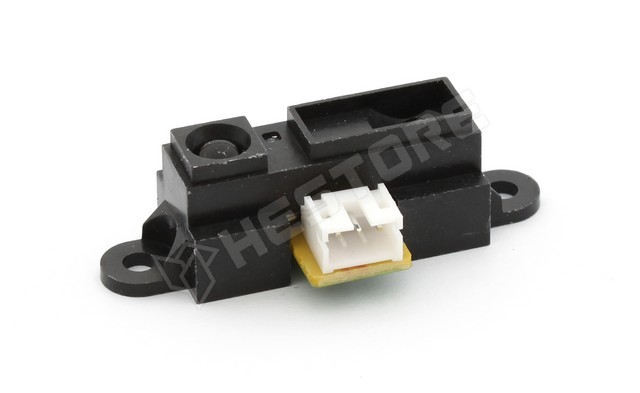

GP2Y0A21YK0F
Sensor:photoelectric
SENSOR, DISTANCE, ANALOGUE O/P
SVHC:No SVHC (15-Dec-2010)
Detecting Distance: 10cm to 80cm
External Depth: 18.9mm
External Length / Height: 13.5mm
External Width: 44.5mm
Forward Current If(AV): 50mA
Operating Current DC: 50mA
Operating Temperature Range: -10°C to +60°C
Output Type: Analogue
Supply Voltage Max: 5.5VDC
Supply Voltage Min: 4.5VDC
Voltage Rating VDC: 7V
Voltage Vf Typ: 5.5V
SVHC:No SVHC (15-Dec-2010)
Detecting Distance: 10cm to 80cm
External Depth: 18.9mm
External Length / Height: 13.5mm
External Width: 44.5mm
Forward Current If(AV): 50mA
Operating Current DC: 50mA
Operating Temperature Range: -10°C to +60°C
Output Type: Analogue
Supply Voltage Max: 5.5VDC
Supply Voltage Min: 4.5VDC
Voltage Rating VDC: 7V
Voltage Vf Typ: 5.5V
| RoHS | yes |
|---|---|
| Manufacturer | SHARP |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.358.23
Quantity (pcs):
Unit price excl. VAT
| 1+ | 2 135 Ft |
|---|---|
| 5+ | 1 888 Ft |
| 10+ | 1 836 Ft |
| 20+ | 1 794 Ft |
| 50+ | 1 740 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 2 |
| 10-15 workdays | > 250 |
